차선 인식

import cv2
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.image as mpimg

1. 차선 인식 (White lane)

image = mpimg.imread('./data/test.jpg') # R->G-B

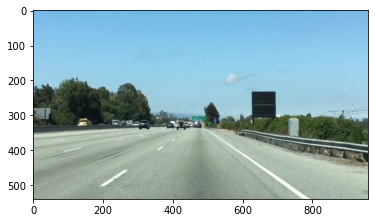

plt.imshow(image)
<matplotlib.image.AxesImage at 0x1c94b3baf10>

Reference

  • Udacity - Self-Driving Car NanoDegree

png

Color Selection

  • Color Picker Tool로 해당 이미지 색상의 RGB 코드값 얻어오기
  • https://annystudio.com/software/colorpicker/#download
color_select = np.copy(image)

# todo
red_threshold = 230
green_threshold = 230
blue_threshold = 230

color_threshold = ((image[:, :, 0] < red_threshold) |
                   (image[:, :, 1] < green_threshold) |
                   (image[:, :, 2] < blue_threshold))

# 차선 색깔에 해당하지 않는 영역을 검은색으로 바꾸기
color_select[color_threshold] = [0, 0, 0]

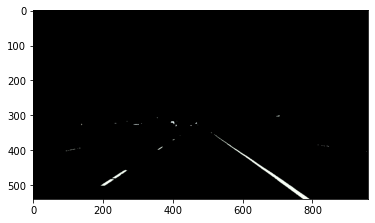

plt.imshow(color_select)
<matplotlib.image.AxesImage at 0x1c94be8ca60>

png

Region Selection

image.shape
(540, 960, 3)
region_select = np.copy(image)

# todo
left_bottom = [0, 539]
right_bottom = [900, 539]
apex = [475, 320]

pts =np.array([left_bottom, right_bottom, apex])
cv2.fillPoly(region_select, [pts], color=[0, 0, 255]) # 삼각형안을 파란색으로 채우기

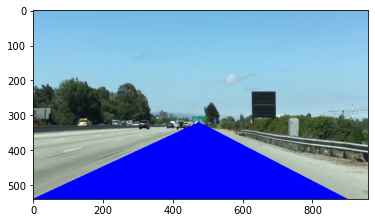

plt.imshow(region_select)
<matplotlib.image.AxesImage at 0x1c94bef7580>

png

Color and Regions Selection

# 1. Color Selection
color_select = np.copy(image)

# todo
red_threshold = 230
green_threshold = 230
blue_threshold = 230

color_threshold = ((image[:, :, 0] < red_threshold) |
                   (image[:, :, 1] < green_threshold) |
                   (image[:, :, 2] < blue_threshold))

# 차선 색깔에 해당하지 않는 영역을 검은색으로 바꾸기
color_select[color_threshold] = [0, 0, 0]

# 2. Region Selection
region_select = np.copy(image)

# todo
left_bottom = [0, 539]
right_bottom = [900, 539]
apex = [475, 320]

pts =np.array([left_bottom, right_bottom, apex])
cv2.fillPoly(region_select, [pts], color=[0, 0, 255]) # 삼각형안을 파란색으로 채우기

region_threshold = ((region_select[:, :, 0] == 0) & # R channel
                   (region_select[:, :, 1] == 0) & # G Channel
                   (region_select[:, :, 2] == 255)) # B Channel


# 3. Color Selection + Region Selection
# color_threshold : 차선(흰색)이 아닌 부분 True로 설정
# region_threshold : 관심영역(Region of interes, roi)에만 True 설정

lane_select = np.copy(image)
lane_select[~color_threshold & region_threshold] = [255, 0, 0]

# 관심영역만 점선으로 표시(추가)
x = left_bottom[0], right_bottom[0], apex[0], left_bottom[0]
y = left_bottom[1], right_bottom[1], apex[1], left_bottom[1]

plt.plot(x, y, 'b--', 4)

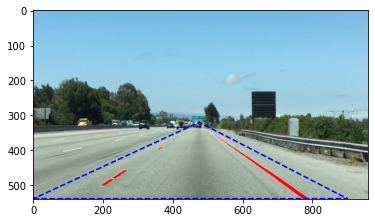

plt.imshow(lane_select)
<matplotlib.image.AxesImage at 0x1c94c992f10>

png

2. 차선 인식 (White and Yellow Lane)

image = mpimg.imread('./data/exit-ramp.jpg') # R->G->B
plt.imshow(image)
<matplotlib.image.AxesImage at 0x7fd3a6621d60>

png

Step 1: Gray Scale 변환

gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)
print(gray.shape)
plt.imshow(gray, cmap="gray")
(540, 960)





<matplotlib.image.AxesImage at 0x7fd3a2dafdf0>

png

Step 2 : Gaussian Blurring 변환 (optional)

kernel_size = 5
blur_gray = cv2.GaussianBlur(gray, (kernel_size, kernel_size), 0)
plt.imshow(blur_gray, cmap='gray')
<matplotlib.image.AxesImage at 0x7fd3948f1d90>

png

Step 3 : Edge Detect

low_threshold = 50
high_threshold = 150 # low:high 의 비율 1:2 또는 1:3

edges = cv2.Canny(blur_gray, low_threshold, high_threshold)

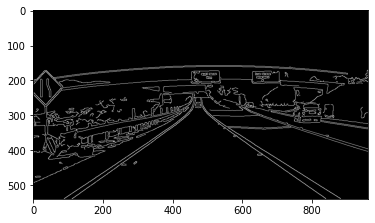

plt.imshow(edges, cmap="gray")
<matplotlib.image.AxesImage at 0x7fd394907970>

png

Step 4 : ROI(Region of interes) Select

height = edges.shape[0]
width = edges.shape[1]

pts = np.array([[0, height-1], [450, 290], [490, 290], [width-1, height-1]])
mask = np.zeros(edges.shape, edges.dtype)
cv2.fillPoly(mask, [pts], 255)

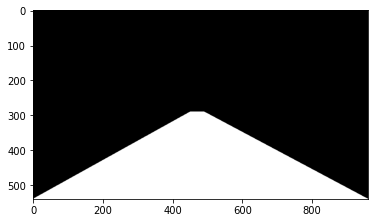

plt.imshow(mask, cmap="gray")
<matplotlib.image.AxesImage at 0x7fd39423ef40>

png

masked_edges = cv2.bitwise_and(edges, mask)

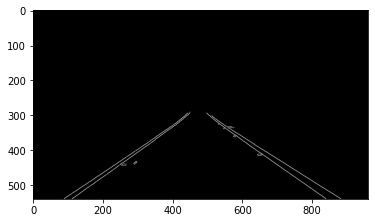

plt.imshow(masked_edges, cmap="gray")
<matplotlib.image.AxesImage at 0x7fd3944d7790>

png

Step 5 : Line Detect (with hough transform)

rho = 1 # 1 or 2 : 숫자가 작을수록 정밀하게 검출되지만 연산시간이 더 걸림
theta = np.pi/180 # 라디안 단위
threshold = 30 # 축적배열에 교차하는 점의 숫자가 높다는것은 직선을 이루는 점들이 많다는 뜻
                # 얼마나 큰 값을 직선으로 판단할지는 threshold에 달려있음
minLineLength = 40 # 검출할 선분의 최소 길이
maxLineGap = 20 # 직선으로 간주할 최대 에지 점 간격

lines = cv2.HoughLinesP(masked_edges, rho, theta, threshold,
                minLineLength = minLineLength,
                maxLineGap = maxLineGap)

# 참고 1차원 데이터를 3차원으로 확장하는 방법
# dst = cv2.cvtColor(masked_edges, cv2.COLOR_GRAY2BGR) # 직선을 그릴 도화지(3 채널 도화지)
# dst = cv2.merge([masked_edges, masked_edges, masked_edges])
dst = np.dstack([masked_edges, masked_edges, masked_edges])
print(dst.shape)
if lines is not None:
    for line in lines:
        line = line[0]
        pt1 = line[0], line[1]
        pt2 = line[2], line[3]
        cv2.line(dst, pt1, pt2, (255, 0, 0), 2, cv2.LINE_AA)
plt.imshow(dst)
(540, 960, 3)





<matplotlib.image.AxesImage at 0x7fd393ec3bb0>

png

Pipeline (Step 1 ~ Step 5)

### Step 1 : Grayscale 변환
gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)

### Step 2 : Gaussian Blurring 변환
kernel_size = 5
blur_gray = cv2.GaussianBlur(gray, (kernel_size, kernel_size), 0)

### Step 3 : Edge Detect
low_threshold = 50
high_threshold = 150 # low:high 의 비율 1:2 또는 1:3
edges = cv2.Canny(blur_gray, low_threshold, high_threshold)

### Step 4 : ROI Select
height = edges.shape[0]
width = edges.shape[1]

pts = np.array([[0, height-1], [450, 290], [490, 290], [width-1, height-1]])
mask = np.zeros(edges.shape, edges.dtype)
cv2.fillPoly(mask, [pts], 255)

masked_edges = cv2.bitwise_and(edges, mask)

### Step 5 : Line Detect
rho = 1 # 1 or 2 : 숫자가 작을수록 정밀하게 검출되지만 연산시간이 더 걸림
theta = np.pi/180 # 라디안 단위
threshold = 30 # 축적배열에 교차하는 점의 숫자가 높다는것은 직선을 이루는 점들이 많다는 뜻
                # 얼마나 큰 값을 직선으로 판단할지는 threshold에 달려있음
minLineLength = 40 # 검출할 선분의 최소 길이
maxLineGap = 20 # 직선으로 간주할 최대 에지 점 간격

lines = cv2.HoughLinesP(masked_edges, rho, theta, threshold,
                minLineLength = minLineLength,
                maxLineGap = maxLineGap)

# 참고 1차원 데이터를 3차원으로 확장하는 방법
# dst = cv2.cvtColor(masked_edges, cv2.COLOR_GRAY2BGR) # 직선을 그릴 도화지(3 채널 도화지)
# dst = cv2.merge([masked_edges, masked_edges, masked_edges])
dst = np.dstack([masked_edges, masked_edges, masked_edges])

if lines is not None:
    for line in lines:
        line = line[0]
        pt1 = line[0], line[1]
        pt2 = line[2], line[3]
        cv2.line(dst, pt1, pt2, (255, 0, 0), 2, cv2.LINE_AA)
rho = 1 # 1 or 2 : 숫자가 작을수록 정밀하게 검출되지만 연산시간이 더 걸림
theta = np.pi/180 # 라디안 단위
threshold = 30 # 축적배열에 교차하는 점의 숫자가 높다는것은 직선을 이루는 점들이 많다는 뜻
                # 얼마나 큰 값을 직선으로 판단할지는 threshold에 달려있음
minLineLength = 40 # 검출할 선분의 최소 길이
maxLineGap = 20 # 직선으로 간주할 최대 에지 점 간격

lines = cv2.HoughLinesP(masked_edges, rho, theta, threshold,
                minLineLength = minLineLength,
                maxLineGap = maxLineGap)

# 참고 1차원 데이터를 3차원으로 확장하는 방법
# dst = cv2.cvtColor(masked_edges, cv2.COLOR_GRAY2BGR) # 직선을 그릴 도화지(3 채널 도화지)
# dst = cv2.merge([masked_edges, masked_edges, masked_edges])
dst = np.dstack([masked_edges, masked_edges, masked_edges])

if lines is not None:
    for line in lines:
        line = line[0]
        pt1 = line[0], line[1]
        pt2 = line[2], line[3]
        cv2.line(dst, pt1, pt2, (255, 0, 0), 2, cv2.LINE_AA)

# 원본 영상 : image, 차선인식 결과 : dst

result = cv2.addWeighted(image, 1.0, dst, 0.8, 0)

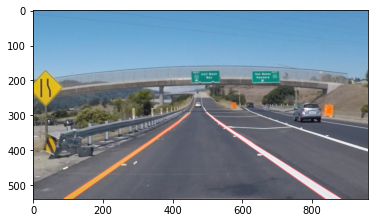

plt.imshow(result)
<matplotlib.image.AxesImage at 0x7fd393daf310>

png
