Deep learning 1 (신경망 추론)

2023-03-30 5 분 소요

신경망

import numpy as np
import matplotlib.pyplot as plt
from IPython.display import Image

퍼셉트론으로 논리 회로 표현

AND

def AND(x1, x2):
    x = np.array([x1, x2])
    w = np.array([0.5, 0.5])
    b = -0.7
    tmp = np.sum(w*x) + b
    if tmp <= 0:
        return 0
    elif tmp > 0:
        return 1

AND(0, 1)

AND(1, 0)

AND(1, 0)

AND(1, 1)

NAND

def NAND(x1, x2):
    x = np.array([x1, x2])
    w = np.array([-0.5, -0.5])
    b = 0.7
    tmp = np.sum(w*x) + b
    if tmp <= 0:
        return 0
    elif tmp > 0:
        return 1

NAND(1, 0)

NAND(0, 1)

NAND(0, 0)

NAND(1, 1)

def OR(x1, x2):
    x = np.array([x1, x2])
    w = np.array([1, 1])
    b = -0.5
    tmp = np.sum(w*x) + b
    if tmp <= 0:
        return 0
    elif tmp > 0:
        return 1

OR(1, 0)

OR(0, 1)

OR(1, 1)

OR(0, 0)

XOR

def XOR(x1, x2):
    s1 = NAND(x1, x2)
    s2 = OR(x1, x2)
    y = AND(s1, s2)
    return y

XOR(0, 0)

XOR(1, 0)

XOR(0, 1)

XOR(1, 1)

활성화 함수

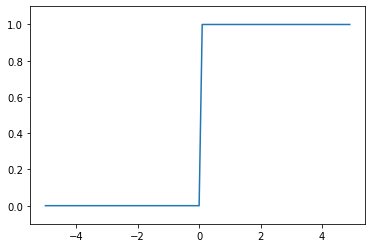

계단함수

def step_function(x):
    return np.array(x>0, dtype=np.int32)

X = np.arange(-5.0, 5.0 , 0.1)
Y = step_function(X)

plt.plot(X, Y)
plt.ylim(-0.1, 1.1)
plt.show()

png

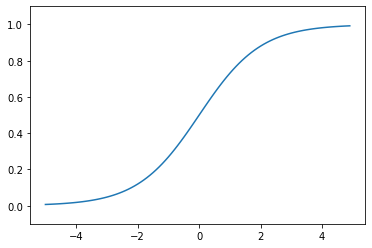

시그모이드 함수

def sigmoid(x):
    return 1 / (1+np.exp(-x))

X = np.arange(-5.0, 5.0, 0.1)
Y = sigmoid(X)

plt.plot(X, Y)
plt.ylim(-0.1, 1.1)
plt.show()

png

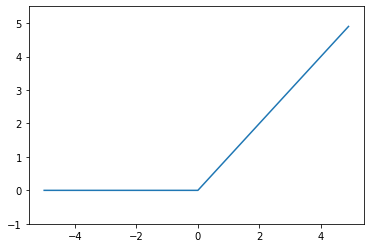

ReLU

def relu(x):
    return np.maximum(0, x)

X = np.arange(-5.0, 5.0, 0.1)
Y = relu(X)

plt.plot(X, Y)
plt.ylim(-1.0, 5.5)
plt.show()

png

다차원 배열 계산

from IPython.display import Image

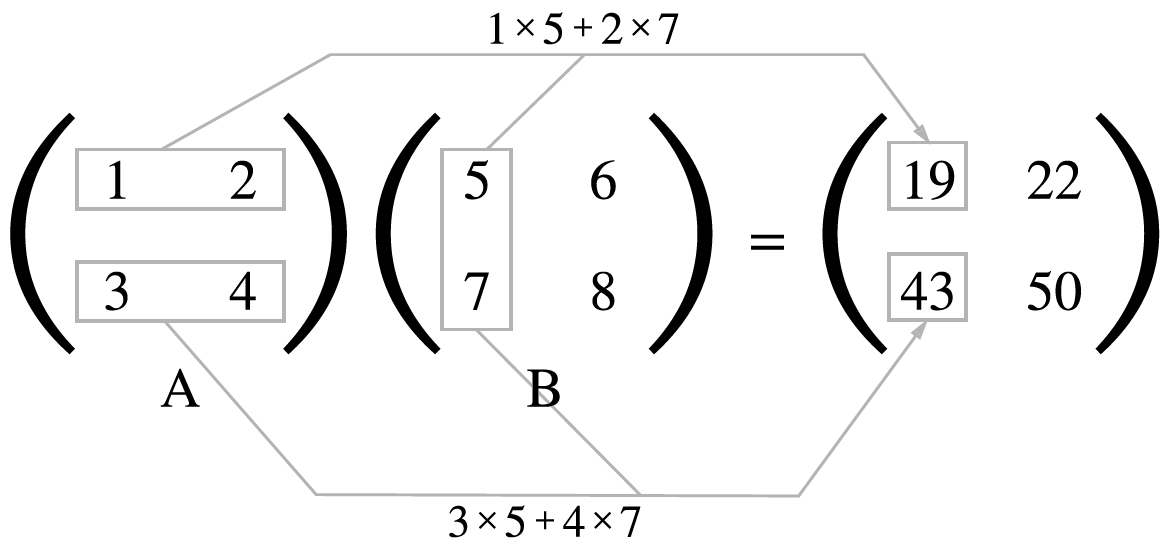

Image('./deep_learning_images/fig 3-11.png', width=400)

png

A = np.array([[1, 2], [3, 4]])
B = np.array([[5, 6], [7, 8]])
np.dot(A, B)

array([[19, 22],
       [43, 50]])

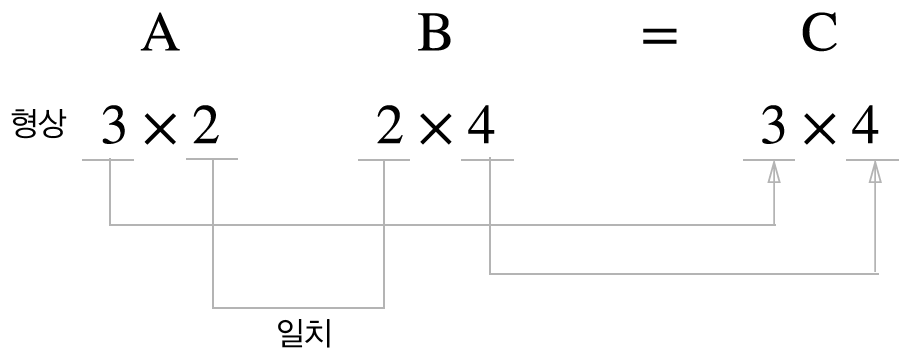

Image('./deep_learning_images/fig 3-12.png', width=400)

png

A = np.array([[1, 2], [3, 4], [5, 6]])
B = np.array([[7, 8, 9, 10], [11, 12, 13, 14]])
C = np.dot(A, B)
print(A.shape, B.shape, C.shape)

(3, 2) (2, 4) (3, 4)

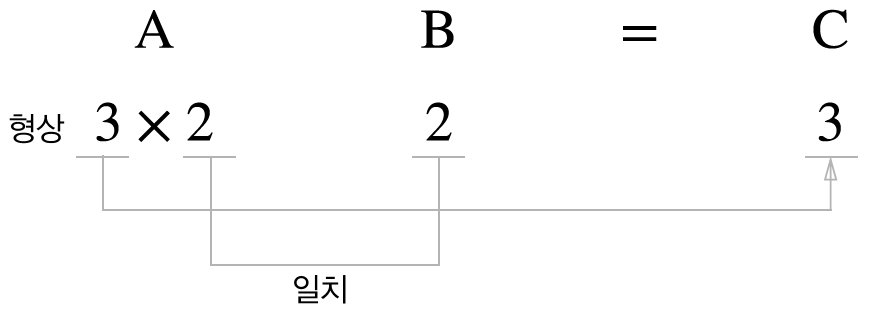

Image('./deep_learning_images/fig 3-13.png', width=350)

png

A = np.array([[1, 2], [3, 4], [5, 6]])
B = np.array([1, 2])
C = np.dot(A, B)
print(A.shape, B.shape, C.shape)

(3, 2) (2,) (3,)

신경망에서의 행렬곱

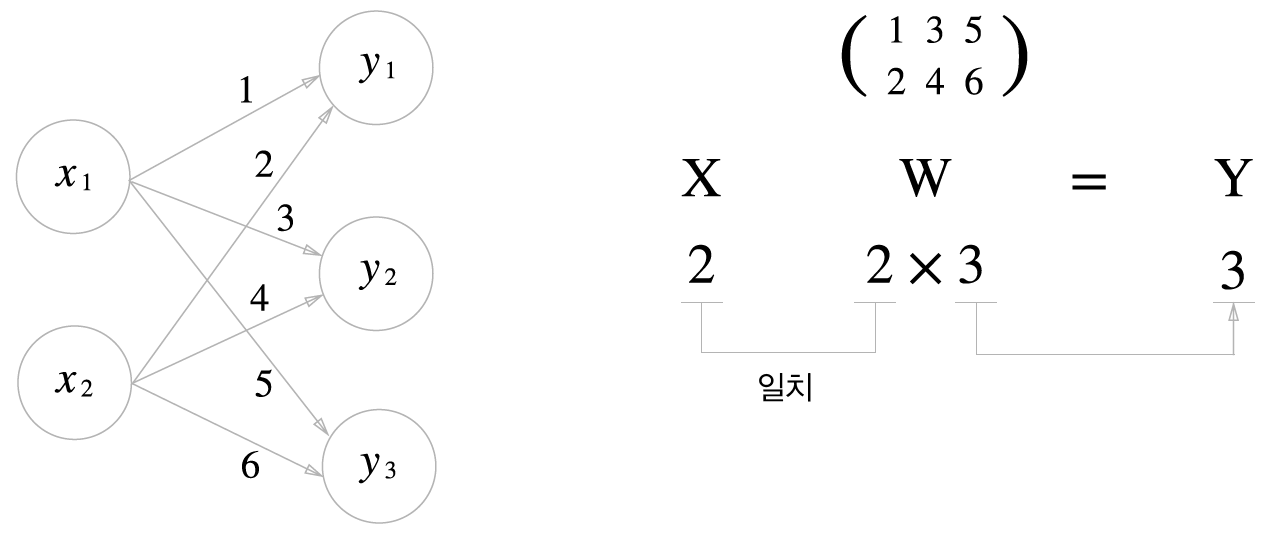

Image('./deep_learning_images/fig 3-14.png', width=420)

png

X = np.array([1, 2])
W = np.array([[1, 3, 5], [2, 4, 6]])
Y = np.dot(X, W)
print(X.shape, W.shape, Y.shape)

(2,) (2, 3) (3,)

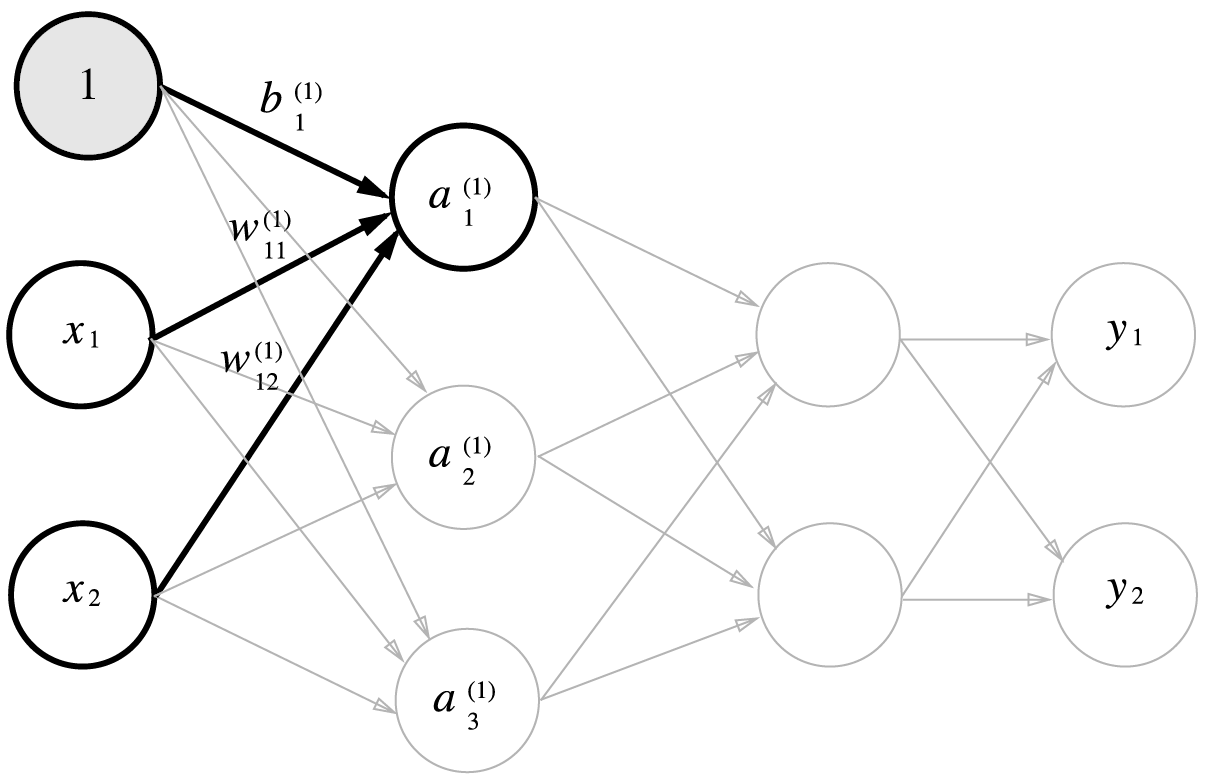

Image('./deep_learning_images/fig 3-17.png', width=400)

png

X = np.array([1, 2])
W1 = np.array([[3], [4]])
B1 = np.array([5])
a1 = np.dot(X, W1) + B1

print(X.shape, W1.shape, B1.shape, a1.shape)

(2,) (2, 1) (1,) (1,)

Image('./deep_learning_images/e 3.9.png', width=200)

png

X = np.array([1.0, 0.5]) # (2, )
W1 = np.array([[0.1, 0.3, 0.5], [0.2, 0.4, 0.6]]) # (2, 3)
B1 = np.array([0.1, 0.2, 0.3]) # (3,)

A1 = np.dot(X, W1) + B1
print(X.shape, W1.shape, B1.shape, A1.shape)

(2,) (2, 3) (3,) (3,)

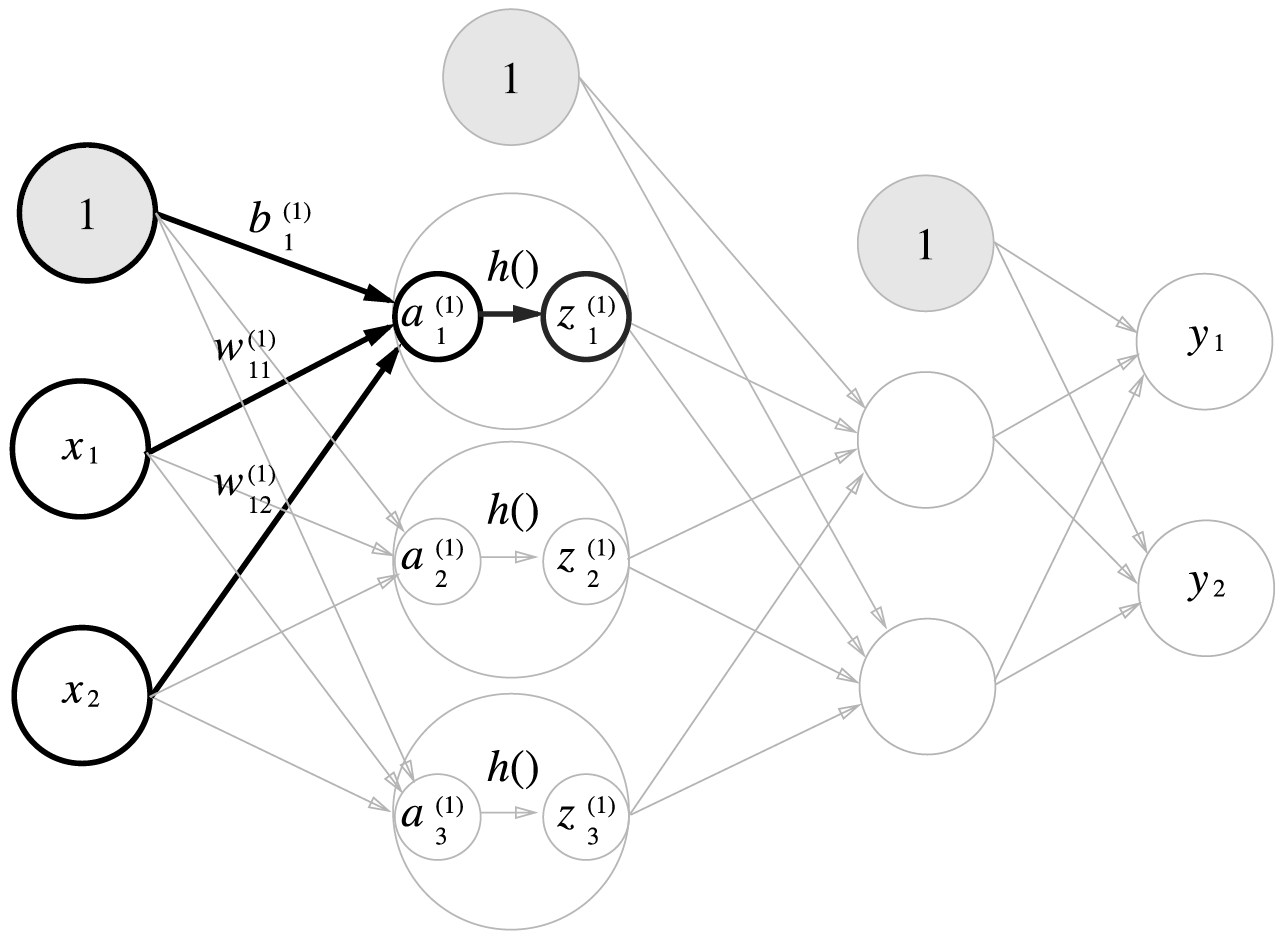

Image('./deep_learning_images/fig 3-18.png', width=400)

png

Z1 = sigmoid(A1) # (3, )

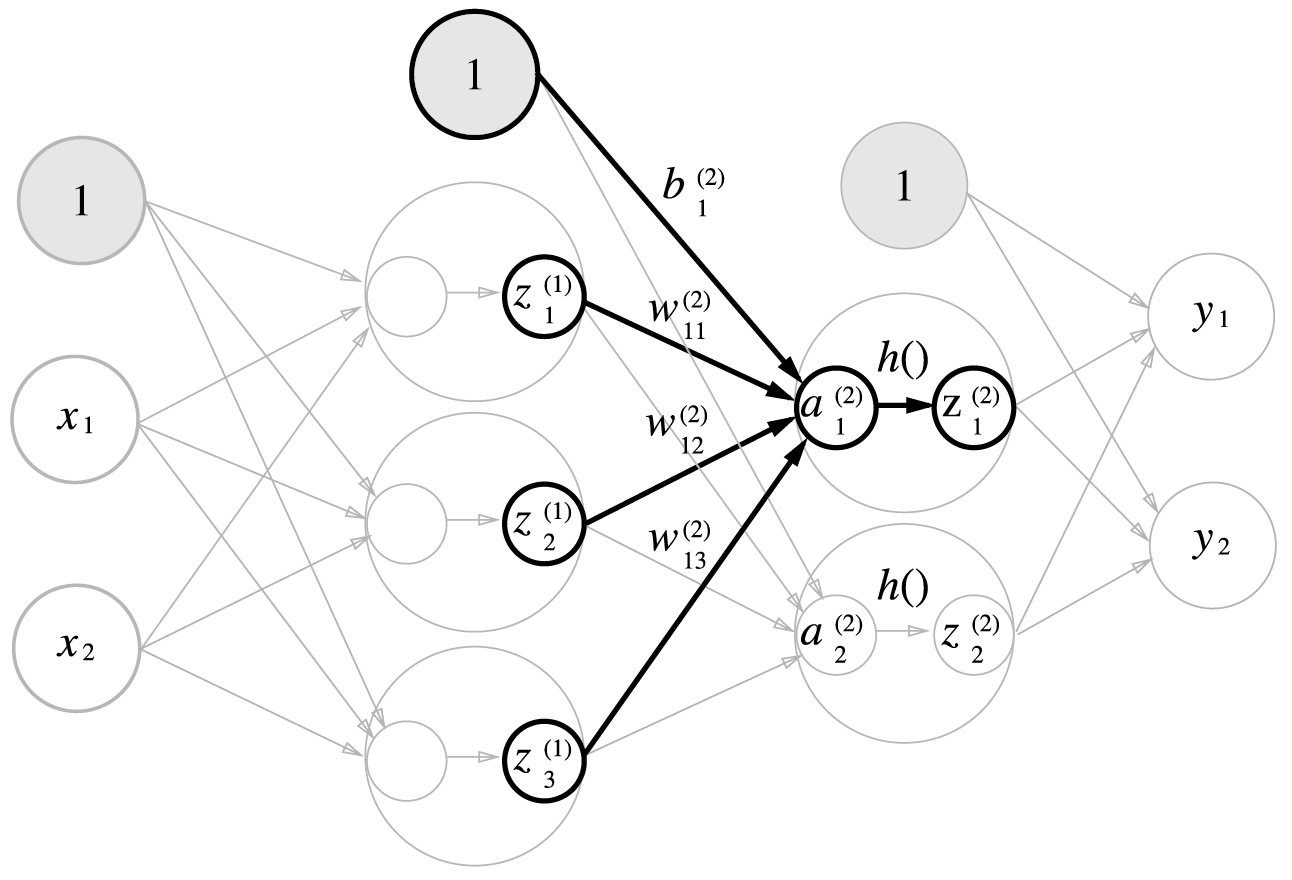

Image('./deep_learning_images/fig 3-19.png', width=400)

png

W2 = np.array([[0.1, 0.4], [0.2, 0.5], [0.3, 0.6]]) # (3, 2)
B2 = np.array([0.1, 0.2]) # (2,)
A2 = np.dot(Z1, W2) + B2  # (2,)
Z2 = sigmoid(A2) # (2, )
print(W2.shape, B2.shape, A2.shape, Z2.shape)

(3, 2) (2,) (2,) (2,)

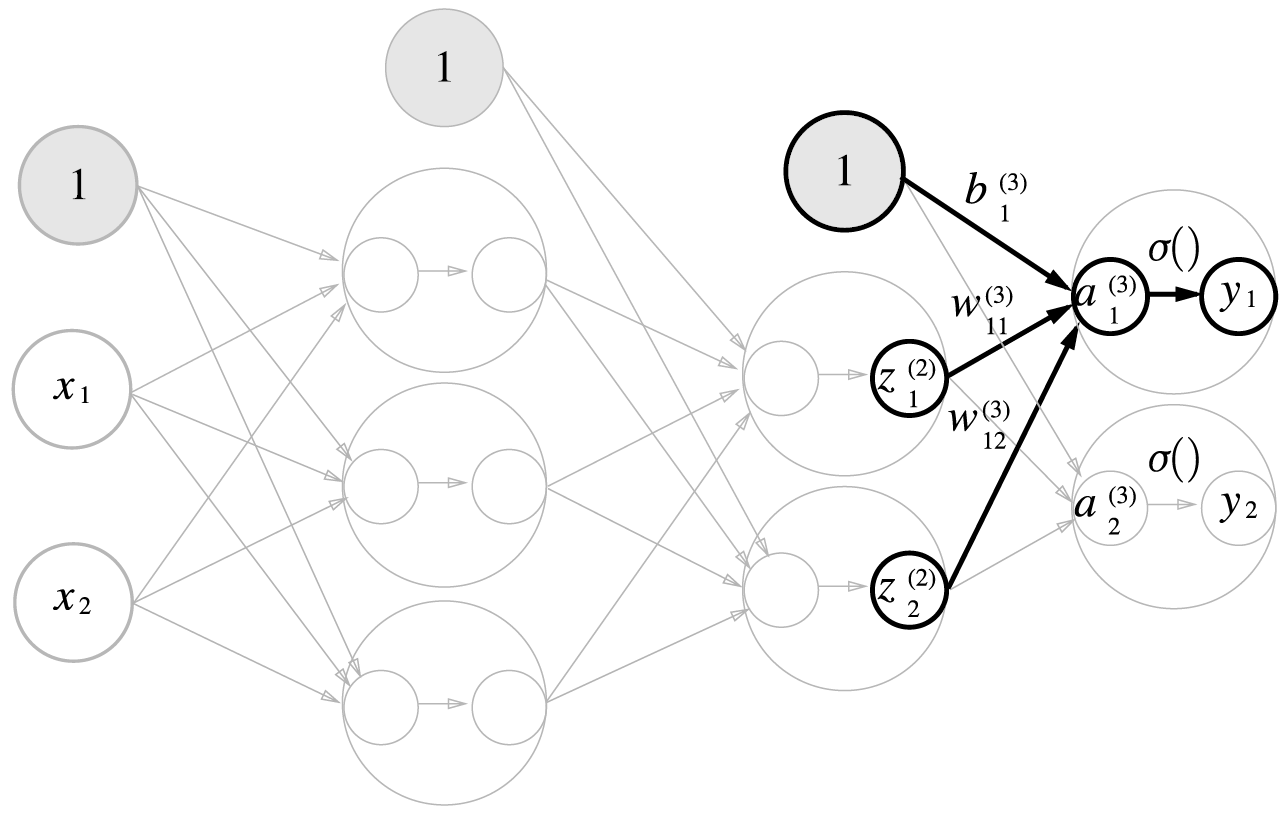

Image('./deep_learning_images/fig 3-20.png', width=400)

png

def identity_function(x):
    return x

W3 = np.array([[0.1, 0.3], [0.2, 0.4]]) # (2, 2)
B3 = np.array([0.1, 0.2]) # (2,)
A3 = np.dot(Z2, W3) + B3 # (2,)
Y = identity_function(A3) # (2,)
print(W3.shape, B3.shape, A3.shape, Y.shape)

(2, 2) (2,) (2,) (2,)

출력층(Softmax 함수)

# overflow 문제가 있음
# def softmax(a):
#     exp_a = np.exp(a)
#     sum_exp_a = np.sum(exp_a)
#     y = exp_a/sum_exp_a
#     return y

# a = np.array([1010, 1000, 990])
# softmax(a)

# overflow 문제 해결
def softmax(a):
    c = np.max(a)
    exp_a = np.exp(a-c)
    sum_exp_a = np.sum(exp_a)
    y = exp_a/sum_exp_a
    return y

softmax(a)

array([9.99954600e-01, 4.53978686e-05, 2.06106005e-09])

3층 신경망 구현

X = np.array([1.0, 0.5]) # (2, )
W1 = np.array([[0.1, 0.3, 0.5], [0.2, 0.4, 0.6]]) # (2, 3)
B1 = np.array([0.1, 0.2, 0.3]) # (3,)

A1 = np.dot(X, W1) + B1
Z1 = sigmoid(A1) # (3, )

W2 = np.array([[0.1, 0.4], [0.2, 0.5], [0.3, 0.6]]) # (3, 2)
B2 = np.array([0.1, 0.2]) # (2,)

A2 = np.dot(Z1, W2) + B2  # (2,)
Z2 = sigmoid(A2) # (2, )

W3 = np.array([[0.1, 0.3], [0.2, 0.4]]) # (2, 2)
B3 = np.array([0.1, 0.2]) # (2,)
A3 = np.dot(Z2, W3) + B3 # (2,)
Y = identity_function(A3) # (2,)
Y

array([0.31682708, 0.69627909])

# 초기 모델 파라미터 설정
def init_network():
    network = {}
    network['W1'] = np.array([[0.1, 0.3, 0.5], [0.2, 0.4, 0.6]]) # (2, 3)
    network['B1'] = np.array([0.1, 0.2, 0.3]) # (3,)

    network['W2'] = np.array([[0.1, 0.4], [0.2, 0.5], [0.3, 0.6]]) # (3, 2)
    network['B2'] = np.array([0.1, 0.2]) # (2,)

    network['W3'] = np.array([[0.1, 0.3], [0.2, 0.4]]) # (2, 2)
    network['B3'] = np.array([0.1, 0.2]) # (2,)

    return network

# 전방향(forward) 연산
def forward(network, X): # predict
    W1, W2, W3 = network['W1'], network['W2'], network['W3']
    B1, B2, B3 = network['B1'], network['B2'], network['B3']

    A1 = np.dot(X, W1) + B1
    Z1 = sigmoid(A1) # (3, )

    A2 = np.dot(Z1, W2) + B2  # (2,)
    Z2 = sigmoid(A2) # (2, )

    A3 = np.dot(Z2, W3) + B3 # (2,)
    Y = identity_function(A3) # (2,)

    return Y

network = init_network()
X = np.array([1.0, 0.5]) # (2, )
Y = forward(network, X)
Y

array([0.31682708, 0.69627909])

손글씨 숫자(MNIST)

from dataset.mnist import load_mnist

def get_data():
    (X_train, y_train), (X_test, y_test) = load_mnist(normalize=True, flatten=True, one_hot_label=False)
    return X_test, y_test

X_test, y_test = get_data()
print(X_test.shape, y_test.shape)

(10000, 784) (10000,)

print(y_test[0])
plt.imshow(X_test[0].reshape(28, 28), cmap="binary")

7

<matplotlib.image.AxesImage at 0x1d4c86ccee0>

png

import pickle

def init_network():
    with open('sample_weight.pkl', 'rb') as f:
        network = pickle.load(f)
    return network

network = init_network()
network.keys()

dict_keys(['b2', 'W1', 'b1', 'W2', 'W3', 'b3'])

network['W1'].shape, network['W2'].shape, network['W3'].shape

((784, 50), (50, 100), (100, 10))

network['b1'].shape, network['b2'].shape, network['b3'].shape

((50,), (100,), (10,))

image 한장에 대한 신경망 예측 과정

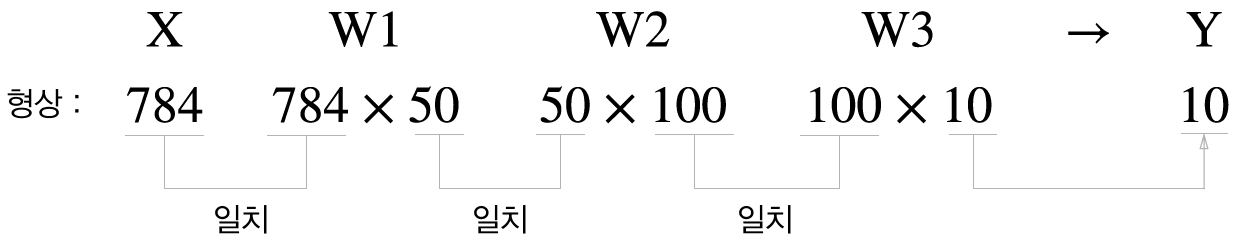

Image('./deep_learning_images/fig 3-26.png', width=430)

png

# 전방향(forward) 연산
def predict(network, X): # predict
    W1, W2, W3 = network['W1'], network['W2'], network['W3']
    B1, B2, B3 = network['b1'], network['b2'], network['b3']

    A1 = np.dot(X, W1) + B1
    Z1 = sigmoid(A1) # (3, )

    A2 = np.dot(Z1, W2) + B2  # (2,)
    Z2 = sigmoid(A2) # (2, )

    A3 = np.d) # (2,)
    ot(Z2, W3) + B3 # (2,)
    Y = softmax(A3
    return Y

y = predict(network, X_test[0]) # 첫번째 이미지에 대한 예측
np.round(y, 3) # y는 소프트맥스 함수의 결과로서 확률로 표현

array([0.   , 0.   , 0.001, 0.001, 0.   , 0.   , 0.   , 0.997, 0.   ,
       0.001], dtype=float32)

accuracy_cnt = 0
for i in range(len(X_test)): # 10000 iterations
    prob = predict(network, X_test[i])
    pred = np.argmax(prob) # (0~9)까지의 값이 예측
    if pred == y_test[i]:
        accuracy_cnt += 1

print("Accuracy : ", accuracy_cnt / len(y_test))

Accuracy :  0.9352

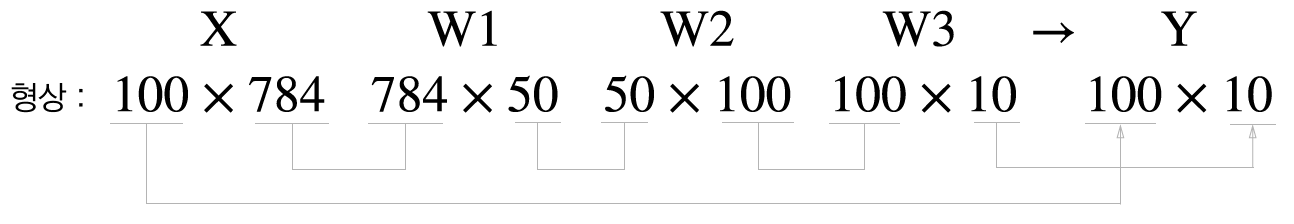

image 배치에 대한 신경망 예측 과정

Image('./deep_learning_images/fig 3-27.png', width=430)

png

batch_size = 100
accuracy_cnt = 0
for i in range(0, len(X_test), batch_size): # 100장씩 100번 iterations
    x_batch = X_test[i:i+batch_size] # 100장씩 슬라이싱 (0~99번이미지, 100~199번 이미지.....9900~9999 이미지)
    prob = predict(network, x_batch) # 100장의 이미지에 대한 결과 probability(10개)
    pred = np.argmax(prob, axis=1) # pred : 100장의 이미지에 대한 최종 예측값
    accuracy_cnt += np.sum(pred == y_test[i:i+batch_size])

print("Accuracy:", accuracy_cnt/len(y_test))

Accuracy: 0.9352

Reference

밑바닥부터 시작하는 딥러닝 1 (사이토 고키 저)
