신경망 학습 (MNIST in Pytorch)

import torch # 파이토치 기본 라이브러리

# torchvision : 데이터셋, 모델 아키텍처, 컴퓨터 비전의 이미지 변환 기능 제공
from torchvision import datasets # torchvision에서 제공하는 데이터셋
from torchvision import transforms # 이미지 변환기능을 제공하는 패키지

# torch.utils.data : 파이토치 데이터 로딩 유틸리티
from torch.utils.data import DataLoader # 모델 훈련에 사용할 수 있는 미니 배치 구성하고
                                        # 매 epoch마다 데이터를 샘플링, 병렬처리 등의 일을 해주는 함수

import numpy as np
import matplotlib.pyplot as plt

1. 데이터 불러오기

# Compose를 통해 원하는 전처리기를 차례대로 넣을 수 있음음
# mnist_transform = transforms.Compose([transforms.Resize(16), transforms.ToTensor()])
# trainset = datasets.MNIST('./datasets/', download=True, train=True, transform = mnist_transform)

# dataset = datasets.MNIST(다운받을 디렉토리, 다운로드여부, 학습용여부, 전처리방법)
trainset = datasets.MNIST('./datasets/', download=True, train=True, transform = transforms.ToTensor())
testset = datasets.MNIST('./datasets/', download=True, train=False, transform = transforms.ToTensor())

Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz to ./datasets/MNIST/raw/train-images-idx3-ubyte.gz

100%|██████████| 9912422/9912422 [00:00<00:00, 224742078.05it/s]

Extracting ./datasets/MNIST/raw/train-images-idx3-ubyte.gz to ./datasets/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz to ./datasets/MNIST/raw/train-labels-idx1-ubyte.gz

100%|██████████| 28881/28881 [00:00<00:00, 37772277.46it/s]

Extracting ./datasets/MNIST/raw/train-labels-idx1-ubyte.gz to ./datasets/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz to ./datasets/MNIST/raw/t10k-images-idx3-ubyte.gz

100%|██████████| 1648877/1648877 [00:00<00:00, 111429813.85it/s]

Extracting ./datasets/MNIST/raw/t10k-images-idx3-ubyte.gz to ./datasets/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz to ./datasets/MNIST/raw/t10k-labels-idx1-ubyte.gz

100%|██████████| 4542/4542 [00:00<00:00, 12274825.24it/s]

Extracting ./datasets/MNIST/raw/t10k-labels-idx1-ubyte.gz to ./datasets/MNIST/raw

print(type(trainset), len(trainset))
print(type(testset), len(testset))

<class 'torchvision.datasets.mnist.MNIST'> 60000
<class 'torchvision.datasets.mnist.MNIST'> 10000

# 0번째 샘플에 2개의 원소가 있는데, 그중 첫번째 원소는 이미지, 두번째 원소는 정답
# 그러나 파이토치로 읽어들인 이미지 텐서의 형상이 channels * height * width 임
# 그에 비해 opencv, matplotlib으로 읽어들인 이미지 array의 형상은 height * width * channels

print(trainset[0][0].size(), trainset[0][1])

torch.Size([1, 28, 28]) 5

2. 데이터 시각화

tensor로 시각화화

sample_img = trainset[0][0]
sample_img.size()

torch.Size([1, 28, 28])

sample_img.squeeze().size()

torch.Size([28, 28])

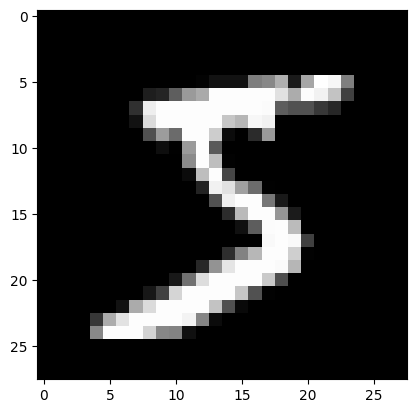

plt.imshow(sample_img.squeeze(), cmap='gray')

<matplotlib.image.AxesImage at 0x7fea3e6ac070>

png

numpy로 시각화

sample_img_np = sample_img.numpy()
sample_img_np.shape

(1, 28, 28)

sample_img_np.squeeze().shape

(28, 28)

plt.imshow(sample_img_np.squeeze(), cmap='gray')

<matplotlib.image.AxesImage at 0x7fea3bc4f3d0>

png

permute -> squeeze : sample_img가 현재는 gray

# sample_img가 컬러이미지라면 squeeze 할 필요 없음
# color_sample = sample_img.permute(1, 2, 0)

sample_img.size()

torch.Size([1, 28, 28])

sample_img_permute = sample_img.permute(1, 2, 0)
sample_img_permute.size()

torch.Size([28, 28, 1])

sample_img_permute.squeeze(axis=2).size()

torch.Size([28, 28])

plt.imshow(sample_img_permute.squeeze(), cmap='gray')

<matplotlib.image.AxesImage at 0x7fea3bc60520>

png

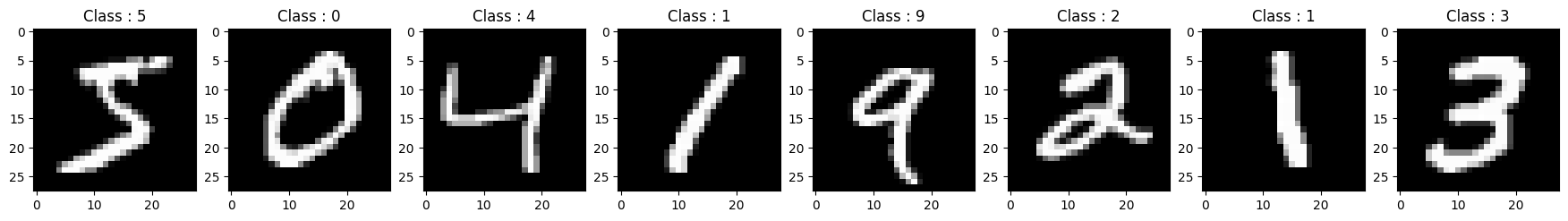

figure, axes = plt.subplots(nrows=1, ncols=8, figsize=(22, 6))

for i in range(8):
  image, label= trainset[i][0], trainset[i][1]
  axes[i].imshow(image.squeeze(), cmap='gray')
  axes[i].set_title('Class : ' + str(label))

png

3. 데이터 적재

# DataLoader
# 모델 훈련에 사용할 수 있는 미니 배치 구성하고
# 매 epoch마다 데이터를 샘플링, 병렬처리 등의 일을 해주는 함수

batch_size = 100
# dataloader = DataLoader(데이터셋, 배치사이즈, 셔플여부.....)
trainloader = DataLoader(trainset, batch_size=batch_size, shuffle=True) # 훈련용 60000개의 데이터를 100개씩 준비
testloader = DataLoader(testset, batch_size=batch_size, shuffle=False) # 테스트용 10000개의 데이터를 100개씩 준비

print(type(trainloader), len(trainloader))
print(type(testloader), len(testloader))

<class 'torch.utils.data.dataloader.DataLoader'> 600
<class 'torch.utils.data.dataloader.DataLoader'> 100

trainloader

<torch.utils.data.dataloader.DataLoader at 0x7fea3b28e9d0>

dir(trainloader) # trainloader는 iterator

train_iter = iter(trainloader)
images, labels = next(train_iter)
images.size(), labels.size()

(torch.Size([100, 1, 28, 28]), torch.Size([100]))

4. 모델 생성

from IPython.display import Image
Image('./images/mlp_mnist.png', width=500)

png

import torch.nn as nn # 파이토치에서 제공하는 다양한 계층 (Linear Layer, ....)
import torch.optim as optim # 옵티마이저 (경사하강법...)
import torch.nn.functional as F # 파이토치에서 제공하는 함수(활성화 함수...)

option 1 : nn.Sequential 사용하기

model = nn.Sequential(
                      nn.Linear(784, 20),
                      nn.Sigmoid(),
                      nn.Linear(20, 10)
                      )
model

Sequential(
  (0): Linear(in_features=784, out_features=20, bias=True)
  (1): Sigmoid()
  (2): Linear(in_features=20, out_features=10, bias=True)
)

# nn.Module을 상속받아서 사용하는 서브모듈(nn.Linear, ...)들은 모델 파라미터들이 관리되고 있음을 알 수 있음
for parameter in model.parameters():
  print(parameter.size())

torch.Size([20, 784])
torch.Size([20])
torch.Size([10, 20])
torch.Size([10])

# nn.Sequential을 구성하는 계층들의 이름까지 출력
for name, parameter in model.named_parameters():
  print(name, parameter.size())

weight torch.Size([20, 784])
bias torch.Size([20])
weight torch.Size([10, 20])
bias torch.Size([10])

option 2 : nn.Sequential에 OrderedDict 적용하기

from collections import OrderedDict

model = nn.Sequential(OrderedDict([
                        ('hidden_linear', nn.Linear(784, 20)),
                        ('hidden_activation', nn.Sigmoid()),
                        ('ouput_linear', nn.Linear(20, 10))
                      ]))
model

Sequential(
  (hidden_linear): Linear(in_features=784, out_features=20, bias=True)
  (hidden_activation): Sigmoid()
  (ouput_linear): Linear(in_features=20, out_features=10, bias=True)
)

for name, parameter in model.named_parameters():
  print(name, parameter.size())

hidden_linear.weight torch.Size([20, 784])
hidden_linear.bias torch.Size([20])
ouput_linear.weight torch.Size([10, 20])
ouput_linear.bias torch.Size([10])

option 3 : nn.Module 서브클래싱하기

파라미터 관리가 필요없는 기능(활성화 함수, …)도 서브모듈(nn.Module로부터 상속)로 작성

class TwoLayerNet(nn.Module):
  def __init__(self):
    super().__init__()
    self.hidden_linear = nn.Linear(in_features=784, out_features=20)
    self.hidden_activation = nn.Sigmoid()
    self.ouput_linear = nn.Linear(in_features=20, out_features=10)

  def forward(self, x):
    x = self.hidden_linear(x)
    x = self.hidden_activation(x)
    x = self.ouput_linear(x)
    return x

model = TwoLayerNet()
model

TwoLayerNet(
  (hidden_linear): Linear(in_features=784, out_features=20, bias=True)
  (hidden_activation): Sigmoid()
  (ouput_linear): Linear(in_features=20, out_features=10, bias=True)
)

for name, parameter in model.named_parameters():
  print(name, parameter.size())

hidden_linear.weight torch.Size([20, 784])
hidden_linear.bias torch.Size([20])
ouput_linear.weight torch.Size([10, 20])
ouput_linear.bias torch.Size([10])

option 4 : nn.Module 서브클래싱하기

파라미터 관리가 필요없는 기능(활성화 함수, …) 함수형(functional)으로 작성
함수형이란 출력이 입력에 의해 결정

class TwoLayerNet(nn.Module):
  def __init__(self):
    super().__init__()
    self.hidden_linear = nn.Linear(in_features=784, out_features=20)
    self.ouput_linear = nn.Linear(in_features=20, out_features=10)

  def forward(self, x):
    x = self.hidden_linear(x)
    x = F.sigmoid(x)
    x = self.ouput_linear(x)
    return x

model = TwoLayerNet()
model

TwoLayerNet(
  (hidden_linear): Linear(in_features=784, out_features=20, bias=True)
  (ouput_linear): Linear(in_features=20, out_features=10, bias=True)
)

for name, parameter in model.named_parameters():
  print(name, parameter.size())

hidden_linear.weight torch.Size([20, 784])
hidden_linear.bias torch.Size([20])
ouput_linear.weight torch.Size([10, 20])
ouput_linear.bias torch.Size([10])

5. 모델 설정 (손실함수, 옵티마이저 선택)

# Note. CrossEntropyLoss 관련
# https://pytorch.org/docs/stable/generated/torch.nn.CrossEntropyLoss.html?highlight=crossentropyloss#torch.nn.CrossEntropyLoss
# Note that this case is equivalent to the combination of LogSoftmax and NLLLoss.
# CrossEntropy를 손실함수로 사용하게 되면 forward() 계산시에 softmax() 함수를 사용하면 안됨(otherwise 중복)
# softmax 를 사용하면 부동 소수점 부정확성으로 인해 정확도가 떨어지고 불안정해질 수 있음
# forward()의 마지막 출력은 확률값이 아닌 score(logit)이어야 함

learning_rate = 0.1
# 손실함수
loss_fn = nn.CrossEntropyLoss()

# 옵티마이저(최적화함수, 예:경사하강법)
optimizer = optim.SGD(model.parameters(), lr=learning_rate)

from torchsummary import summary

# summary(모델, (채널, 인풋사이즈))
summary(model, (1, 784))

----------------------------------------------------------------
        Layer (type)               Output Shape         Param #
================================================================
            Linear-1                [-1, 1, 20]          15,700
            Linear-2                [-1, 1, 10]             210
================================================================
Total params: 15,910
Trainable params: 15,910
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.00
Forward/backward pass size (MB): 0.00
Params size (MB): 0.06
Estimated Total Size (MB): 0.06
----------------------------------------------------------------

784*20 + 20

10 * 20 + 10

6. 모델 훈련

trainloader

<torch.utils.data.dataloader.DataLoader at 0x7fea3b28e9d0>

len(trainloader)

epochs = 17
steps = 0
# steps_per_epoch = len(trainloader) # 600 iterations
steps_per_epoch = len(trainset)/batch_size # 600 iterations

for epoch in range(epochs):
  running_loss = 0
  for images, labels in trainloader: # 이터레이터로부터 next()가 호출되며 미니배치 100개씩을 반환(images, labels)
    steps += 1
  # 1. 입력 데이터 준비
    # before resize : (100, 1, 28, 28)
    images.resize_(images.shape[0], 784)
    # after resize : (100, 784)

  # 2. 전방향(forward) 예측
    predict = model(images) # 예측 점수
    loss = loss_fn(predict, labels) # 예측 점수와 정답을 CrossEntropyLoss에 넣어 Loss값 반환

  # 3. 역방향(backward) 오차(Gradient) 전파
    optimizer.zero_grad() # Gradient가 누적되지 않게 하기 위해
    loss.backward() # 모델파리미터들의 Gradient 전파

  # 4. 경사 하강법으로 모델 파라미터 업데이트
    optimizer.step() # W <- W -lr*Gradient

    running_loss += loss.item()
    if (steps % steps_per_epoch) == 0 : # 600, 1200, 1800, ....(epoch)
      print('Epoch : {}/{}.......'.format(epoch+1, epochs),
            'Loss : {}'.format(running_loss/steps_per_epoch))
      running_loss = 0

Epoch : 1/17....... Loss : 0.5584875592092673
Epoch : 2/17....... Loss : 0.4106673734138409
Epoch : 3/17....... Loss : 0.3518453801671664
Epoch : 4/17....... Loss : 0.3187762003143628
Epoch : 5/17....... Loss : 0.29627135639389357
Epoch : 6/17....... Loss : 0.27978881236165765
Epoch : 7/17....... Loss : 0.2663819943368435
Epoch : 8/17....... Loss : 0.255467306189239
Epoch : 9/17....... Loss : 0.24600239269435406
Epoch : 10/17....... Loss : 0.23775523462643225
Epoch : 11/17....... Loss : 0.2302229973177115
Epoch : 12/17....... Loss : 0.22369915128995974
Epoch : 13/17....... Loss : 0.21776643681029478
Epoch : 14/17....... Loss : 0.212262866931657
Epoch : 15/17....... Loss : 0.20721533005436263
Epoch : 16/17....... Loss : 0.20254455306877692
Epoch : 17/17....... Loss : 0.1984483090043068

epochs = 17
steps = 0
# steps_per_epoch = len(trainloader) # 600 iterations
steps_per_epoch = len(trainset)/batch_size # 600 iterations

for epoch in range(epochs):
  running_loss = 0
  for images, labels in trainloader: # 이터레이터로부터 next()가 호출되며 미니배치 100개씩을 반환(images, labels)
    steps += 1
  # 1. 입력 데이터 준비
    # before resize : (100, 1, 28, 28)
    images.resize_(images.shape[0], 784)
    # after resize : (100, 784)

  # 2. 전방향(forward) 예측
    predict = model(images) # 예측 점수
    loss = loss_fn(predict, labels) # 예측 점수와 정답을 CrossEntropyLoss에 넣어 Loss값 반환

  # 3. 역방향(backward) 오차(Gradient) 전파
    optimizer.zero_grad() # Gradient가 누적되지 않게 하기 위해
    loss.backward() # 모델파리미터들의 Gradient 전파

  # 4. 경사 하강법으로 모델 파라미터 업데이트
    optimizer.step() # W <- W -lr*Gradient

    running_loss += loss.item()

  # 매 epoch 마다 loss값 출력
  print('Epoch : {}/{}.......'.format(epoch+1, epochs),
        'Loss : {}'.format(running_loss/steps_per_epoch))
  # running_loss = 0

Epoch : 1/17....... Loss : 1.3314239980777105
Epoch : 2/17....... Loss : 0.5544554363191128
Epoch : 3/17....... Loss : 0.4085979046920935
Epoch : 4/17....... Loss : 0.35159790456295015
Epoch : 5/17....... Loss : 0.3199071667591731
Epoch : 6/17....... Loss : 0.2987711794177691
Epoch : 7/17....... Loss : 0.2830567279458046
Epoch : 8/17....... Loss : 0.2703934657449524
Epoch : 9/17....... Loss : 0.2597169236342112
Epoch : 10/17....... Loss : 0.2505294536675016
Epoch : 11/17....... Loss : 0.24248206504931052
Epoch : 12/17....... Loss : 0.23508482793966928
Epoch : 13/17....... Loss : 0.228595398205022
Epoch : 14/17....... Loss : 0.22253441113978625
Epoch : 15/17....... Loss : 0.21717012982815503
Epoch : 16/17....... Loss : 0.21197644542902708
Epoch : 17/17....... Loss : 0.2072841609393557

Twitter Facebook LinkedIn

Deep learning 6 (mnist in pytorch (1) 학습)

신경망 학습 (MNIST in Pytorch)

1. 데이터 불러오기

2. 데이터 시각화

3. 데이터 적재

4. 모델 생성

5. 모델 설정 (손실함수, 옵티마이저 선택)

6. 모델 훈련

공유하기

댓글남기기

참고

소개(about me)

Rnn 20 (attention and seq2seq learning using date dataset in pytorch)

Rnn 19 (attention and seq2seq learning using addition dataset in pytorch)

Rnn 18 (어텐션)
