신경망 학습 (MNIST in Pytorch)

import torch # 파이토치 기본 라이브러리

# torchvision : 데이터셋, 모델 아키텍처, 컴퓨터 비전의 이미지 변환 기능 제공
from torchvision import datasets # torchvision에서 제공하는 데이터셋
from torchvision import transforms # 이미지 변환기능을 제공하는 패키지

# torch.utils.data : 파이토치 데이터 로딩 유틸리티
from torch.utils.data import DataLoader # 모델 훈련에 사용할 수 있는 미니 배치 구성하고
                                        # 매 epoch마다 데이터를 샘플링, 병렬처리 등의 일을 해주는 함수

from torch.utils.data import random_split

import numpy as np
import matplotlib.pyplot as plt

1. 데이터 불러오기

# Compose를 통해 원하는 전처리기를 차례대로 넣을 수 있음음
# mnist_transform = transforms.Compose([transforms.Resize(16), transforms.ToTensor()])
# trainset = datasets.MNIST('./datasets/', download=True, train=True, transform = mnist_transform)

# dataset = datasets.MNIST(다운받을 디렉토리, 다운로드여부, 학습용여부, 전처리방법)
trainset = datasets.MNIST('./datasets/', download=True, train=True, transform = transforms.ToTensor())
testset = datasets.MNIST('./datasets/', download=True, train=False, transform = transforms.ToTensor())

Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz to ./datasets/MNIST/raw/train-images-idx3-ubyte.gz

100%|██████████| 9912422/9912422 [00:00<00:00, 133144530.98it/s]

Extracting ./datasets/MNIST/raw/train-images-idx3-ubyte.gz to ./datasets/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz to ./datasets/MNIST/raw/train-labels-idx1-ubyte.gz

100%|██████████| 28881/28881 [00:00<00:00, 73953415.03it/s]

Extracting ./datasets/MNIST/raw/train-labels-idx1-ubyte.gz to ./datasets/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz to ./datasets/MNIST/raw/t10k-images-idx3-ubyte.gz

100%|██████████| 1648877/1648877 [00:00<00:00, 42539436.30it/s]

Extracting ./datasets/MNIST/raw/t10k-images-idx3-ubyte.gz to ./datasets/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz to ./datasets/MNIST/raw/t10k-labels-idx1-ubyte.gz

100%|██████████| 4542/4542 [00:00<00:00, 8308124.19it/s]

Extracting ./datasets/MNIST/raw/t10k-labels-idx1-ubyte.gz to ./datasets/MNIST/raw

# trainset을 다시 train용과 valid 용으로 나누고자 할 때
trainset, validset = random_split(trainset, [50000, 10000])

print(type(trainset), len(trainset))
print(type(validset), len(validset))
print(type(testset), len(testset))

<class 'torch.utils.data.dataset.Subset'> 50000
<class 'torch.utils.data.dataset.Subset'> 10000
<class 'torchvision.datasets.mnist.MNIST'> 10000

# 0번째 샘플에 2개의 원소가 있는데, 그중 첫번째 원소는 이미지, 두번째 원소는 정답
# 그러나 파이토치로 읽어들인 이미지 텐서의 형상이 channels * height * width 임
# 그에 비해 opencv, matplotlib으로 읽어들인 이미지 array의 형상은 height * width * channels
print(trainset[0][0].size(), trainset[0][1])

torch.Size([1, 28, 28]) 2

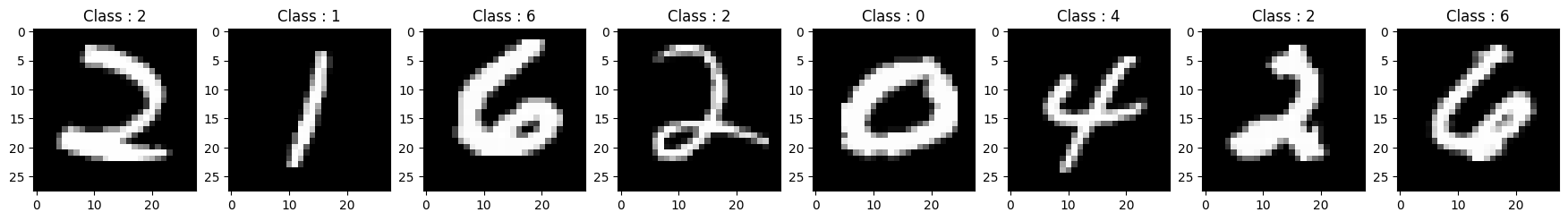

2. 데이터 시각화

figure, axes = plt.subplots(nrows=1, ncols=8, figsize=(22, 6))

for i in range(8):
  image, label= trainset[i][0], trainset[i][1]
  axes[i].imshow(image.squeeze(), cmap='gray')
  axes[i].set_title('Class : ' + str(label))

png

3. 데이터 적재

# DataLoader
# 모델 훈련에 사용할 수 있는 미니 배치 구성하고
# 매 epoch마다 데이터를 샘플링, 병렬처리 등의 일을 해주는 함수

batch_size = 100
# dataloader = DataLoader(데이터셋, 배치사이즈, 셔플여부.....)
trainloader = DataLoader(trainset, batch_size=batch_size, shuffle=True) # 훈련용 50000개의 데이터를 100개씩 준비
validloader = DataLoader(validset, batch_size=batch_size, shuffle=False) # 검증용 10000개의 데이터를 100개씩 준비
testloader = DataLoader(testset, batch_size=batch_size, shuffle=False) # 테스트용 10000개의 데이터를 100개씩 준비

print(type(trainloader), len(trainloader))
print(type(validloader), len(validloader))
print(type(testloader), len(testloader))

<class 'torch.utils.data.dataloader.DataLoader'> 500
<class 'torch.utils.data.dataloader.DataLoader'> 100
<class 'torch.utils.data.dataloader.DataLoader'> 100

train_iter = iter(trainloader)
images, labels = next(train_iter)
images.size(), labels.size()

(torch.Size([100, 1, 28, 28]), torch.Size([100]))

4. 모델 생성

from IPython.display import Image
Image('./images/mlp_mnist.png', width=500)

png

import torch.nn as nn # 파이토치에서 제공하는 다양한 계층 (Linear Layer, ....)
import torch.optim as optim # 옵티마이저 (경사하강법...)
import torch.nn.functional as F # 파이토치에서 제공하는 함수(활성화 함수...)

option 4 : nn.Module 서브클래싱하기

파라미터 관리가 필요없는 기능(활성화 함수, …) 함수형(functional)으로 작성
함수형이란 출력이 입력에 의해 결정

class Mnist_DNN(nn.Module):
  def __init__(self):
    super().__init__()
    # linear layer, fully connected layer, affine layer, dense layer : np.dot(x, w) + b
    self.hidden_linear1 = nn.Linear(in_features=784, out_features=128)
    self.hidden_linear2 = nn.Linear(in_features=128, out_features=64)
    self.ouput_linear = nn.Linear(in_features=64, out_features=10)

  def forward(self, x):
    x = self.hidden_linear1(x)
    x = F.relu(x)
    x = self.hidden_linear2(x)
    x = F.relu(x)
    x = self.ouput_linear(x)
    return x

model = Mnist_DNN()
model

Mnist_DNN(
  (hidden_linear1): Linear(in_features=784, out_features=128, bias=True)
  (hidden_linear2): Linear(in_features=128, out_features=64, bias=True)
  (ouput_linear): Linear(in_features=64, out_features=10, bias=True)
)

model.ouput_linear.bias

Parameter containing:
tensor([ 0.0361,  0.0344, -0.0412,  0.0781, -0.0987, -0.0746, -0.0694,  0.1225,
         0.0778,  0.0395], requires_grad=True)

for name, parameter in model.named_parameters():
  print(name, parameter.size())

hidden_linear1.weight torch.Size([128, 784])
hidden_linear1.bias torch.Size([128])
hidden_linear2.weight torch.Size([64, 128])
hidden_linear2.bias torch.Size([64])
ouput_linear.weight torch.Size([10, 64])
ouput_linear.bias torch.Size([10])

5. 모델 설정 (손실함수, 옵티마이저 선택)

# Note. CrossEntropyLoss 관련
# https://pytorch.org/docs/stable/generated/torch.nn.CrossEntropyLoss.html?highlight=crossentropyloss#torch.nn.CrossEntropyLoss
# Note that this case is equivalent to the combination of LogSoftmax and NLLLoss.
# CrossEntropy를 손실함수로 사용하게 되면 forward() 계산시에 softmax() 함수를 사용하면 안됨(otherwise 중복)
# softmax 를 사용하면 부동 소수점 부정확성으로 인해 정확도가 떨어지고 불안정해질 수 있음
# forward()의 마지막 출력은 확률값이 아닌 score(logit)이어야 함

learning_rate = 0.1
# 손실함수
loss_fn = nn.CrossEntropyLoss()

# 옵티마이저(최적화함수, 예:경사하강법)
optimizer = optim.SGD(model.parameters(), lr=learning_rate)

from torchsummary import summary

# summary(모델, (채널, 인풋사이즈))
summary(model, (1, 784))

----------------------------------------------------------------
        Layer (type)               Output Shape         Param #
================================================================
            Linear-1               [-1, 1, 128]         100,480
            Linear-2                [-1, 1, 64]           8,256
            Linear-3                [-1, 1, 10]             650
================================================================
Total params: 109,386
Trainable params: 109,386
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.00
Forward/backward pass size (MB): 0.00
Params size (MB): 0.42
Estimated Total Size (MB): 0.42
----------------------------------------------------------------

784*128 + 128

128*64 + 64

64*10 + 10

6. 모델 훈련

# torch.no_grad()
# https://pytorch.org/docs/stable/generated/torch.no_grad.html
# Context-manager that disabled gradient calculation.

# Disabling gradient calculation is useful for inference, when you are sure that you will not call Tensor.backward().
# It will reduce memory consumption for computations that would otherwise have requires_grad=True.

def validate(model, validloader, loss_fn):
  total = 0
  correct = 0
  valid_loss = 0
  valid_accuracy = 0

  # 전방향 예측을 구할 때는 gradient가 필요가 없음음
  with torch.no_grad():
    for images, labels in validloader: # 이터레이터로부터 next()가 호출되며 미니배치 100개씩을 반환(images, labels)
      # 1. 입력 데이터 준비
      images.resize_(images.size()[0], 784)
      # 2. 전방향(Forward) 예측
      logit = model(images) # 예측 점수
      _, preds = torch.max(logit, 1) # 100개에 대한 최종 예측
      # preds = logit.max(dim=1)[1]
      correct += int((preds == labels).sum()) # 100개 중 맞은 것의 개수가 coorect에 누적
      total += labels.shape[0] # 배치 사이즈만큼씩 total에 누적

      loss = loss_fn(logit, labels)
      valid_loss += loss.item() # tensor에서 값을 꺼내와서, 100개의 loss 평균값을 valid_loss에 누적

    valid_accuracy = correct / total

  return valid_loss, valid_accuracy

epochs = 17
steps = 0

steps_per_epoch = len(trainloader) # 500 iterations


for epoch in range(epochs):
  model.train() # 훈련 모드드
  train_loss = 0
  for images, labels in trainloader: # 이터레이터로부터 next()가 호출되며 미니배치 100개씩을 반환(images, labels)
    steps += 1
  # 1. 입력 데이터 준비
    # before resize : (100, 1, 28, 28)
    images.resize_(images.shape[0], 784)
    # after resize : (100, 784)

  # 2. 전방향(forward) 예측
    predict = model(images) # 예측 점수
    loss = loss_fn(predict, labels) # 예측 점수와 정답을 CrossEntropyLoss에 넣어 Loss값 반환

  # 3. 역방향(backward) 오차(Gradient) 전파
    optimizer.zero_grad() # Gradient가 누적되지 않게 하기 위해
    loss.backward() # 모델파리미터들의 Gradient 전파

  # 4. 경사 하강법으로 모델 파라미터 업데이트
    optimizer.step() # W <- W -lr*Gradient

    train_loss += loss.item()
    if (steps % steps_per_epoch) == 0 : # 500, 1000, 1500, ....(epoch)
      model.eval() # 평가 모드 : 평가에서 사용하지 않을 계층(배치 정규화, 드롭아웃)들을 수행하지 않게 하기 위해서
      valid_loss, valid_accuracy = validate(model, validloader, loss_fn)

      print('Epoch : {}/{}.......'.format(epoch+1, epochs),
            'Train Loss : {:.3f}'.format(train_loss/len(trainloader)), # train_loss 500개 분량의 loss
            'Valid Loss : {:.3f}'.format(valid_loss/len(validloader)), # valid_loss 100개 분량의 loss
            'Valid Accuracy : {:.3f}'.format(valid_accuracy)
            )


Epoch : 1/17....... Train Loss : 0.704 Valid Loss : 0.309 Valid Accuracy : 0.906
Epoch : 2/17....... Train Loss : 0.273 Valid Loss : 0.237 Valid Accuracy : 0.929
Epoch : 3/17....... Train Loss : 0.200 Valid Loss : 0.175 Valid Accuracy : 0.948
Epoch : 4/17....... Train Loss : 0.157 Valid Loss : 0.153 Valid Accuracy : 0.955
Epoch : 5/17....... Train Loss : 0.129 Valid Loss : 0.128 Valid Accuracy : 0.962
Epoch : 6/17....... Train Loss : 0.110 Valid Loss : 0.123 Valid Accuracy : 0.964
Epoch : 7/17....... Train Loss : 0.096 Valid Loss : 0.106 Valid Accuracy : 0.968
Epoch : 8/17....... Train Loss : 0.083 Valid Loss : 0.097 Valid Accuracy : 0.972
Epoch : 9/17....... Train Loss : 0.073 Valid Loss : 0.094 Valid Accuracy : 0.971
Epoch : 10/17....... Train Loss : 0.064 Valid Loss : 0.091 Valid Accuracy : 0.973
Epoch : 11/17....... Train Loss : 0.057 Valid Loss : 0.085 Valid Accuracy : 0.975
Epoch : 12/17....... Train Loss : 0.050 Valid Loss : 0.088 Valid Accuracy : 0.974
Epoch : 13/17....... Train Loss : 0.045 Valid Loss : 0.088 Valid Accuracy : 0.975
Epoch : 14/17....... Train Loss : 0.040 Valid Loss : 0.082 Valid Accuracy : 0.976
Epoch : 15/17....... Train Loss : 0.036 Valid Loss : 0.083 Valid Accuracy : 0.975
Epoch : 16/17....... Train Loss : 0.032 Valid Loss : 0.081 Valid Accuracy : 0.977
Epoch : 17/17....... Train Loss : 0.028 Valid Loss : 0.081 Valid Accuracy : 0.977

epochs = 17
steps = 0
# steps_per_epoch = len(trainloader) # 600 iterations
steps_per_epoch = len(trainset)/batch_size # 600 iterations

for epoch in range(epochs):
  model.train()
  train_loss = 0
  for images, labels in trainloader: # 이터레이터로부터 next()가 호출되며 미니배치 100개씩을 반환(images, labels)
    steps += 1
  # 1. 입력 데이터 준비
    # before resize : (100, 1, 28, 28)
    images.resize_(images.shape[0], 784)
    # after resize : (100, 784)

  # 2. 전방향(forward) 예측
    predict = model(images) # 예측 점수
    loss = loss_fn(predict, labels) # 예측 점수와 정답을 CrossEntropyLoss에 넣어 Loss값 반환

  # 3. 역방향(backward) 오차(Gradient) 전파
    optimizer.zero_grad() # Gradient가 누적되지 않게 하기 위해
    loss.backward() # 모델파리미터들의 Gradient 전파

  # 4. 경사 하강법으로 모델 파라미터 업데이트
    optimizer.step() # W <- W -lr*Gradient

    train_loss += loss.item()

  # 매 epoch 마다 loss값 출력
  model.eval()
  valid_loss, valid_accuracy = validate(model, validloader, loss_fn)

  print('Epoch : {}/{}.......'.format(epoch+1, epochs),
        'Train Loss : {:.3f}'.format(train_loss/len(trainloader)), # train_loss 500개 분량의 loss
        'Valid Loss : {:.3f}'.format(valid_loss/len(validloader)), # valid_loss 100개 분량의 loss
        'Valid Accuracy : {:.3f}'.format(valid_accuracy)
         )

Epoch : 1/17....... Train Loss : 0.026 Valid Loss : 0.079 Valid Accuracy : 0.977
Epoch : 2/17....... Train Loss : 0.023 Valid Loss : 0.083 Valid Accuracy : 0.976
Epoch : 3/17....... Train Loss : 0.020 Valid Loss : 0.079 Valid Accuracy : 0.978
Epoch : 4/17....... Train Loss : 0.018 Valid Loss : 0.082 Valid Accuracy : 0.978
Epoch : 5/17....... Train Loss : 0.016 Valid Loss : 0.083 Valid Accuracy : 0.978
Epoch : 6/17....... Train Loss : 0.013 Valid Loss : 0.085 Valid Accuracy : 0.977
Epoch : 7/17....... Train Loss : 0.012 Valid Loss : 0.084 Valid Accuracy : 0.977
Epoch : 8/17....... Train Loss : 0.011 Valid Loss : 0.081 Valid Accuracy : 0.978
Epoch : 9/17....... Train Loss : 0.009 Valid Loss : 0.083 Valid Accuracy : 0.978
Epoch : 10/17....... Train Loss : 0.008 Valid Loss : 0.082 Valid Accuracy : 0.978
Epoch : 11/17....... Train Loss : 0.007 Valid Loss : 0.083 Valid Accuracy : 0.978
Epoch : 12/17....... Train Loss : 0.007 Valid Loss : 0.083 Valid Accuracy : 0.979
Epoch : 13/17....... Train Loss : 0.006 Valid Loss : 0.083 Valid Accuracy : 0.978
Epoch : 14/17....... Train Loss : 0.005 Valid Loss : 0.084 Valid Accuracy : 0.979
Epoch : 15/17....... Train Loss : 0.005 Valid Loss : 0.084 Valid Accuracy : 0.979
Epoch : 16/17....... Train Loss : 0.004 Valid Loss : 0.084 Valid Accuracy : 0.978
Epoch : 17/17....... Train Loss : 0.004 Valid Loss : 0.087 Valid Accuracy : 0.979

7. 모델 예측

# testloader에서 미니 배치(100개) 가져오기
test_iter = iter(testloader)
images, labels = next(test_iter)
print(images.size(), labels.size())

# random한 index로 이미지 한장 준비하기
rnd_idx = 10
print(images[rnd_idx].shape, labels[rnd_idx])
flattend_img = images[rnd_idx].view(1, 784)

# 준비된 이미지로 예측하기
model.eval()
with torch.no_grad():
  logit = model(flattend_img)

pred = logit.max(dim=1)[1]
print(pred == labels[rnd_idx]) # True : 잘 예측

torch.Size([100, 1, 28, 28]) torch.Size([100])
torch.Size([1, 28, 28]) tensor(0)
tensor([True])

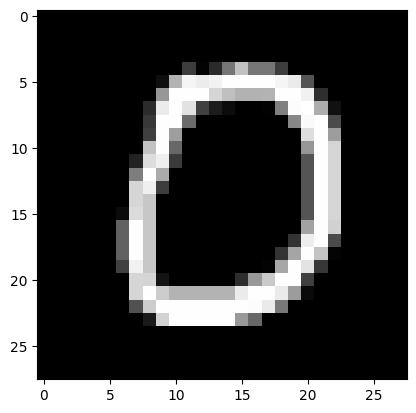

plt.imshow(images[rnd_idx].squeeze(), cmap='gray')

<matplotlib.image.AxesImage at 0x7f6b71844e20>

png

8. 모델 평가

def evaluation(model, testloader, loss_fn):
  total = 0
  correct = 0
  test_loss = 0
  test_accuracy = 0

  # 전방향 예측을 구할 때는 gradient가 필요가 없음음
  with torch.no_grad():
    for images, labels in testloader: # 이터레이터로부터 next()가 호출되며 미니배치 100개씩을 반환(images, labels)
      # 1. 입력 데이터 준비
      images.resize_(images.size()[0], 784)
      # 2. 전방향(Forward) 예측
      logit = model(images) # 예측 점수
      _, preds = torch.max(logit, 1) # 100개에 대한 최종 예측
      # preds = logit.max(dim=1)[1]
      correct += int((preds == labels).sum()) # 100개 중 맞은 것의 개수가 coorect에 누적
      total += labels.shape[0] # 배치 사이즈만큼씩 total에 누적

      loss = loss_fn(logit, labels)
      test_loss += loss.item() # tensor에서 값을 꺼내와서, 100개의 loss 평균값을 valid_loss에 누적

    test_accuracy = correct / total

  print('Test Loss : {:.3f}'.format(test_loss/len(testloader)),
        'Test Accuracy : {:.3f}'.format(test_accuracy))

model.eval()
evaluation(model, testloader, loss_fn)

Test Loss : 0.077 Test Accuracy : 0.977

Twitter Facebook LinkedIn

Deep learning 8 (mnist in pytorch (3) 모델 수정)

신경망 학습 (MNIST in Pytorch)

1. 데이터 불러오기

2. 데이터 시각화

3. 데이터 적재

4. 모델 생성

5. 모델 설정 (손실함수, 옵티마이저 선택)

6. 모델 훈련

7. 모델 예측

8. 모델 평가

공유하기

댓글남기기

참고

소개(about me)

Rnn 20 (attention and seq2seq learning using date dataset in pytorch)

Rnn 19 (attention and seq2seq learning using addition dataset in pytorch)

Rnn 18 (어텐션)
