Machine learning 5 (타이타닉 데이터셋)

2023-03-03 9 분 소요

타이타닉 데이터셋 도전

승객의 나이, 성별, 승객 등급, 승선 위치 같은 속성을 기반으로 하여 승객의 생존 여부를 예측하는 것이 목표
캐글의 타이타닉 챌린지에서 train.csv와 test.csv를 다운로드
두 파일을 각각 datasets 디렉토리에 titanic_train.csv titanic_test.csv로 저장

1. 데이터 탐색

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

1. 데이터 가져오기

train_df = pd.read_csv("./datasets/titanic_train.csv")
test_df = pd.read_csv("./datasets/titanic_test.csv")
submission = pd.read_csv("./datasets/gender_submission.csv")

2. 데이터 훑어보기

train_df.head()

	PassengerId	Survived	Pclass	Name	Sex	Age	SibSp	Ticket	Fare	Cabin	Embarked
0	1	0	3	Braund, Mr. Owen Harris	male	22.0	1	A/5 21171	7.2500	NaN	S
1	2	1	1	Cumings, Mrs. John Bradley (Florence Briggs Th...	female	38.0	1	PC 17599	71.2833	C85	C
2	3	1	3	Heikkinen, Miss. Laina	female	26.0	0	STON/O2. 3101282	7.9250	NaN	S
3	4	1	1	Futrelle, Mrs. Jacques Heath (Lily May Peel)	female	35.0	1	113803	53.1000	C123	S
4	5	0	3	Allen, Mr. William Henry	male	35.0	0	373450	8.0500	NaN	S

Survived: 타깃. 0은 생존하지 못한 것이고 1은 생존을 의미
Pclass: 승객 등급. 1, 2, 3등석.
Name, Sex, Age: 이름 그대로의 의미
SibSp: 함께 탑승한 형제, 배우자의 수
Parch: 함께 탑승한 자녀, 부모의 수
Ticket: 티켓 아이디
Fare: 티켓 요금 (파운드)
Cabin: 객실 번호
Embarked: 승객이 탑승한 곳. C(Cherbourg), Q(Queenstown), S(Southampton)

train_df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 891 entries, 0 to 890
Data columns (total 12 columns):
 #   Column       Non-Null Count  Dtype
---  ------       --------------  -----
 0   PassengerId  891 non-null    int64
 1   Survived     891 non-null    int64
 2   Pclass       891 non-null    int64
 3   Name         891 non-null    object
 4   Sex          891 non-null    object
 5   Age          714 non-null    float64
 6   SibSp        891 non-null    int64
 7   Parch        891 non-null    int64
 8   Ticket       891 non-null    object
 9   Fare         891 non-null    float64
 10  Cabin        204 non-null    object
 11  Embarked     889 non-null    object
dtypes: float64(2), int64(5), object(5)
memory usage: 83.7+ KB

범주형 특성 탐색

Pclass, Sex, Embarked
Embarked 특성은 승객이 탑승한 곳 : C=Cherbourg, Q=Queenstown, S=Southampton.

train_df['Pclass'].value_counts(dropna=False)

  491
  216
  184
Name: Pclass, dtype: int64

train_df['Sex'].value_counts(dropna=False)

male      577
female    314
Name: Sex, dtype: int64

train_df['Embarked'].value_counts(dropna=False)

S      644
C      168
Q       77
NaN      2
Name: Embarked, dtype: int64

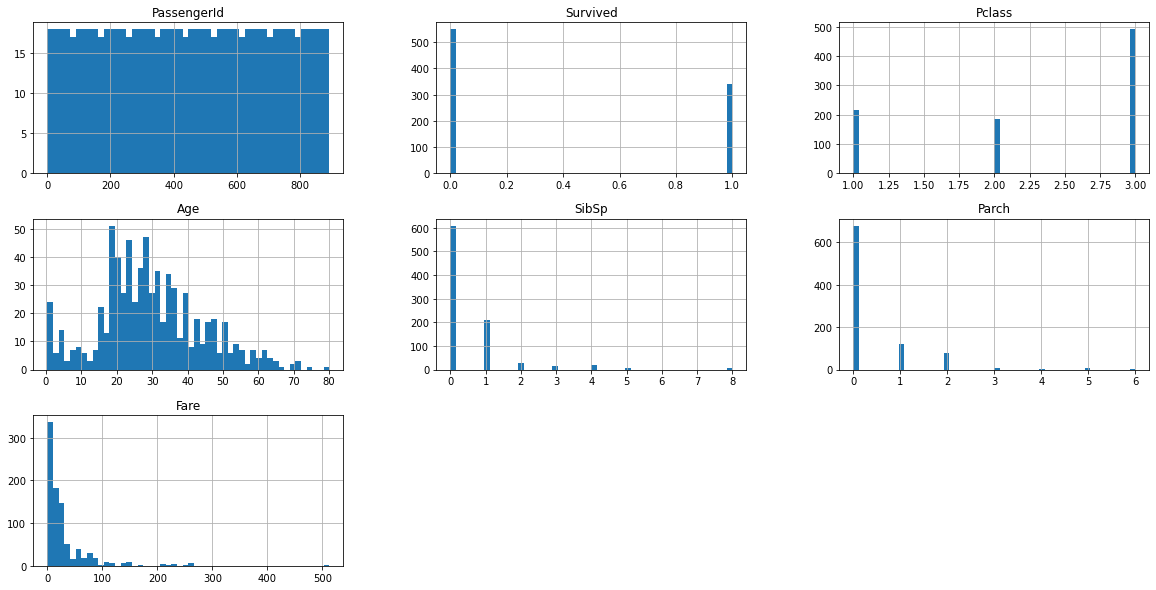

수치형 특성 탐색

train_df.hist(bins=50, figsize=(20, 10))
plt.show()

png

train_df.corrwith(train_df['Survived']).sort_values(ascending=False)

Survived       1.000000
Fare           0.257307
Parch          0.081629
PassengerId   -0.005007
SibSp         -0.035322
Age           -0.077221
Pclass        -0.338481
dtype: float64

특잇값 확인

train_df.describe()

	PassengerId	Survived	Pclass	Age	SibSp	Parch	Fare
count	891.000000	891.000000	891.000000	714.000000	891.000000	891.000000	891.000000
mean	446.000000	0.383838	2.308642	29.699118	0.523008	0.381594	32.204208
std	257.353842	0.486592	0.836071	14.526497	1.102743	0.806057	49.693429
min	1.000000	0.000000	1.000000	0.420000	0.000000	0.000000	0.000000
25%	223.500000	0.000000	2.000000	20.125000	0.000000	0.000000	7.910400
50%	446.000000	0.000000	3.000000	28.000000	0.000000	0.000000	14.454200
75%	668.500000	1.000000	3.000000	38.000000	1.000000	0.000000	31.000000
max	891.000000	1.000000	3.000000	80.000000	8.000000	6.000000	512.329200

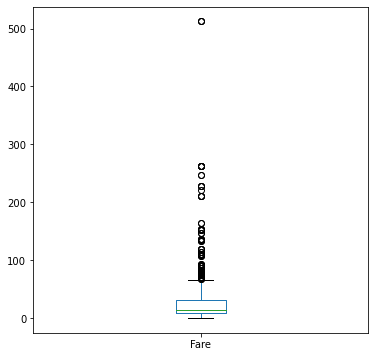

Fare 특성을 boxplot으로 분포 확인하기

train_df['Fare'].plot(kind='box', figsize=(6, 6))
plt.show()

png

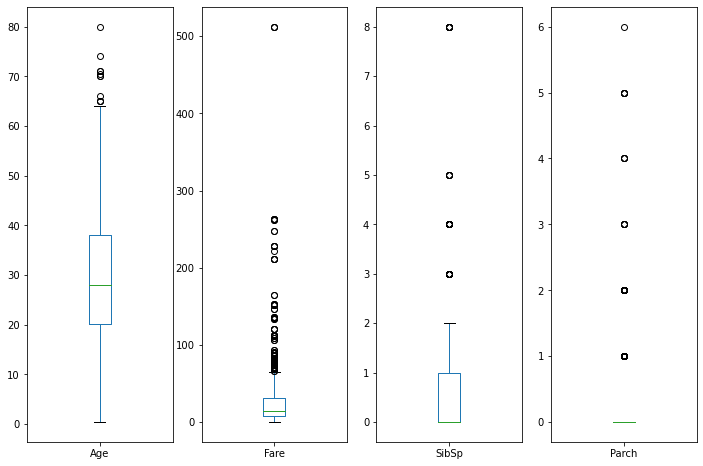

숫자 특성들에 대한 분포 boxplot으로 확인하기

cat_columns = ['Age', 'Fare', 'SibSp', 'Parch']
fig, axes = plt.subplots(nrows=1, ncols=4, figsize=(12, 8))
for i, column in enumerate(cat_columns):
  train_df[column].plot(kind='box', ax=axes[i])
plt.show()

png

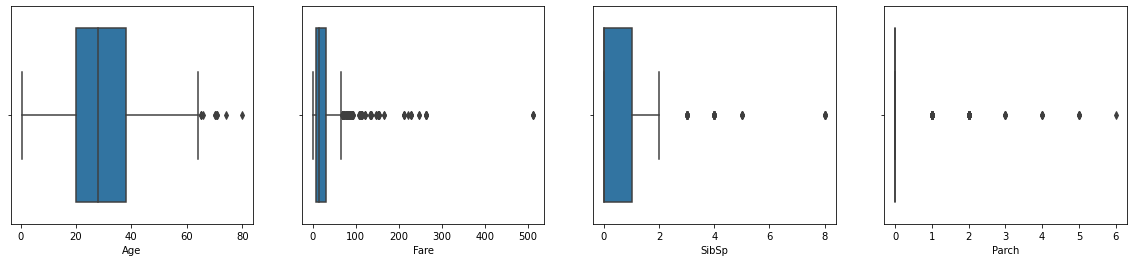

# seaborn을 그리면 더 세련된 시각화
num_columns = ['Age', 'Fare', 'SibSp', 'Parch']
fig, axes = plt.subplots(nrows=1, ncols=4, figsize=(20, 4))
for i, column in enumerate(num_columns):
  sns.boxplot(data=train_df, x=column, ax=axes[i])
plt.show()

png

q1 = train_df["Fare"].quantile(0.25)
q3 = train_df["Fare"].quantile(0.75)
iqr = q3 -q1 # 박스의 길이이

cond = train_df["Fare"] >= q3 + (1.5 * iqr)
outliers = train_df.loc[cond]
max_wo_outlier = outliers['Fare'].min()
print(outliers.index, len(outliers))

Int64Index([  1,  27,  31,  34,  52,  61,  62,  72,  88, 102,
            ...
            792, 802, 820, 829, 835, 846, 849, 856, 863, 879],
           dtype='int64', length=116) 116

train_df.loc[outliers.index, 'Fare'] = max_wo_outlier

train_df['Fare'].describe()

count    891.000000
mean      24.172526
std       20.738142
min        0.000000
25%        7.910400
50%       14.454200
75%       31.000000
max       66.600000
Name: Fare, dtype: float64

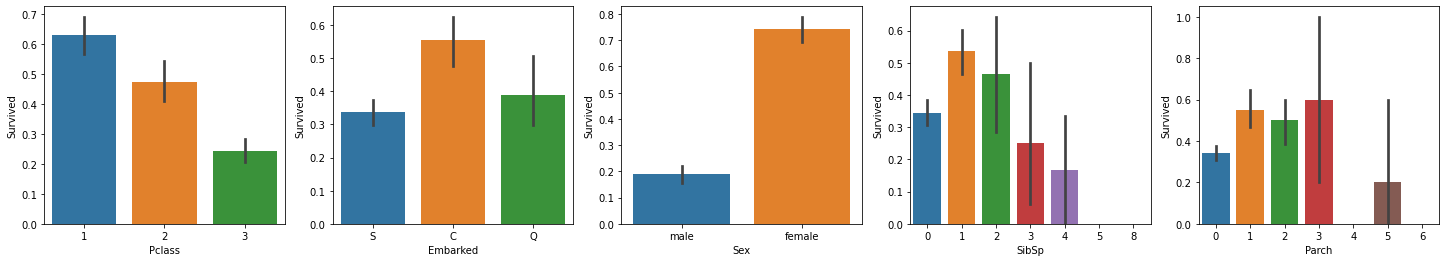

타깃에 영향을 미치는 특성 탐색

cat_columns = ['Pclass', 'Embarked', 'Sex', 'SibSp',	'Parch']
fig, axes = plt.subplots(nrows=1, ncols=5, figsize=(25, 4))
for i, column in enumerate(cat_columns):
  sns.barplot(data=train_df, x=column, y='Survived', ax=axes[i])
plt.show()

png

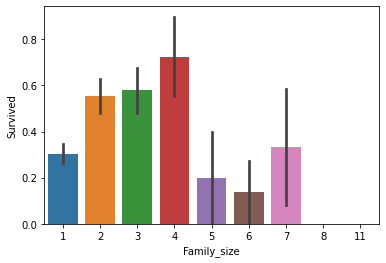

# 기존 특성을 바탕으로 새로운 특성 추가
train_df['Family_size'] = train_df['Parch'] + train_df['SibSp'] + 1
sns.barplot(data=train_df, x='Family_size', y='Survived')
plt.show()

png

train_df['Family_size'].value_counts()

   537
   161
   102
    29
    22
    15
    12
    7
     6
Name: Family_size, dtype: int64

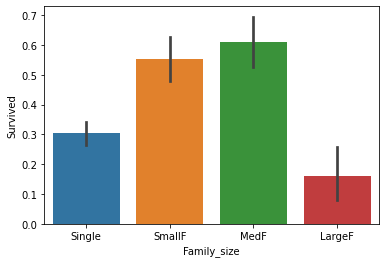

bins = [0, 1, 2, 4, 12]
train_df['Family_size'] = pd.cut(train_df['Family_size'], bins=bins, labels=['Single', 'SmallF', 'MedF', 'LargeF'])

sns.barplot(data=train_df, x='Family_size', y='Survived')
plt.show()

png

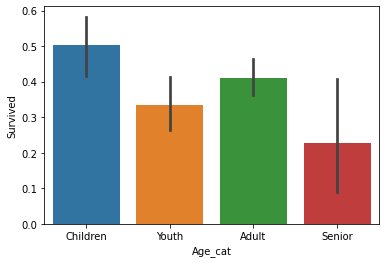

bins = [0, 18, 25, 60, 90]
group_names = ['Children', 'Youth', 'Adult', 'Senior']

train_df['Age_cat'] = pd.cut(train_df['Age'], bins, labels=group_names)

sns.barplot(data=train_df, x='Age_cat', y='Survived')
plt.show()

png

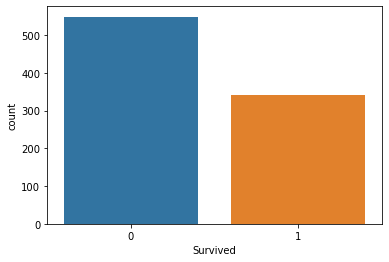

target 분포 확인

train_df['Survived'].value_counts()

0    549
1    342
Name: Survived, dtype: int64

sns.countplot(data=train_df, x='Survived')
plt.show()

png

train_df.columns

Index(['PassengerId', 'Survived', 'Pclass', 'Name', 'Sex', 'Age', 'SibSp',
       'Parch', 'Ticket', 'Fare', 'Cabin', 'Embarked', 'Family_size',
       'Age_cat'],
      dtype='object')

# 현재까지 train_df에 적용했던 내용들을 test_df에도 적용
# 특잇값 처리, Family_size, Age_cat 열 추가

# (1)
cond = test_df["Fare"] >= q3 + (1.5 * iqr)
outliers = test_df.loc[cond]
max_wo_outlier = outliers['Fare'].min()
test_df.loc[outliers.index, 'Fare'] = max_wo_outlier

# (2)
test_df['Family_size'] = test_df['Parch'] + test_df['SibSp'] + 1
bins = [0, 1, 2, 4, 12]
test_df['Family_size'] = pd.cut(test_df['Family_size'], bins=bins, labels=['Single', 'SmallF', 'MedF', 'LargeF'])

# (3)
bins = [0, 18, 25, 60, 80]
group_names = ['Children', 'Youth', 'Adult', 'Senior']

test_df['Age_cat'] = pd.cut(test_df['Age'], bins, labels=group_names)

test_df.columns

Index(['PassengerId', 'Pclass', 'Name', 'Sex', 'Age', 'SibSp', 'Parch',
       'Ticket', 'Fare', 'Cabin', 'Embarked', 'Family_size', 'Age_cat'],
      dtype='object')

2. 데이터 전처리 (누락 데이터 처리, 범주화 등)

2.1 특성데이터와 레이블 데이터 분리

X_train = train_df.drop('Survived', axis=1)
y_train = train_df['Survived']

2.2 범주형 데이터 전처리

from sklearn.impute import SimpleImputer
from sklearn.preprocessing import OneHotEncoder, StandardScaler
from sklearn.pipeline import Pipeline

import sklearn
sklearn.__version__

'0.24.1'

cat_pipeline = Pipeline([
                ('imputer', SimpleImputer(strategy='most_frequent')), # 누락된 데이터를 채워주는 변환기
                ('oh_encoder', OneHotEncoder(sparse=False)) # Onehot Encoding 해주는 변환기, sklearn 1.2 에서는 sparse_output
            ])

2.3 수치형 데이터 전처리

num_pipeline = Pipeline([
                ('imputer', SimpleImputer(strategy='median')), # 누락된 데이터를 채워주는 변환기
                ('std_scaler', StandardScaler()) # 평균을 0, 표준편차1로 만들어주는 변환기기
            ])

2.4 수치형 데이터와 범주형 데이터 연결

from sklearn.compose import ColumnTransformer

num_attribs = ['Age', 'Fare']
cat_attribs = ['Pclass', 'Sex', 'Embarked', 'Family_size'] #, 'Age_cat']

full_pipeline = ColumnTransformer([
                    #('num', SimpleImputer(strategy='median'), num_attribs), # 수치형
                    ('num', num_pipeline, num_attribs), # 수치형
                    ('cat', cat_pipeline, cat_attribs)  # 범주형
            ])

X_train_prepraed = full_pipeline.fit_transform(X_train)

X_train.shape

(891, 13)

X_train_prepraed.shape

(891, 14)

3. 모델 선택과 훈련

Logistic Regression

from sklearn.model_selection import cross_val_score
from sklearn.linear_model import LogisticRegression
log_clf = LogisticRegression(max_iter=1000, random_state=42) # C가 작을 수록 규제가 강해짐
log_clf_scores = cross_val_score(log_clf, X_train_prepraed, y_train, scoring="accuracy", cv=3)
log_clf_scores

array([0.7979798 , 0.81144781, 0.81481481])

KNearestNeighbors

from sklearn.neighbors import KNeighborsClassifier
knn_clf = KNeighborsClassifier()
knn_clf_scores = cross_val_score(knn_clf, X_train_prepraed, y_train, scoring="accuracy", cv=3)
knn_clf_scores

array([0.7979798, 0.8047138, 0.8047138])

Decision Tree

from sklearn.tree import DecisionTreeClassifier
tree_clf = DecisionTreeClassifier()
tree_clf_scores = cross_val_score(tree_clf, X_train_prepraed, y_train, scoring="accuracy", cv=3)
tree_clf_scores

array([0.73400673, 0.78114478, 0.76430976])

RandomForest

from sklearn.ensemble import RandomForestClassifier
rnd_clf = RandomForestClassifier(random_state=42, n_jobs=-1)
rnd_clf_scores = cross_val_score(rnd_clf, X_train_prepraed, y_train, scoring="accuracy", cv=3)
rnd_clf_scores

array([0.75757576, 0.81481481, 0.79124579])

from sklearn.svm import LinearSVC, SVC

# 1. LinearSVC
linear_svc = LinearSVC(random_state = 42)
linear_svc_scores = cross_val_score(linear_svc, X_train_prepraed, y_train, scoring="accuracy", cv=3)
print(linear_svc_scores)

# 2. SCV
linear_kernel_svc = SVC(kernel='linear')
linear_kernel_svc_scores = cross_val_score(linear_kernel_svc, X_train_prepraed, y_train, scoring="accuracy", cv=3)
print(linear_kernel_svc_scores)

[0.7979798  0.81144781 0.80808081]
[0.7979798  0.81481481 0.7979798 ]

4. 하이퍼파라미터 튜닝

from sklearn.model_selection import GridSearchCV

LogisticRegression

param_grid = {'C':[0.1, 0.2, 0.5, 1, 10], 'max_iter':[1000, 2000]} # 5x2 = 10개의 조합

grid_search = GridSearchCV(log_clf, param_grid, cv=5, scoring="accuracy", n_jobs=-1) # 5x2x5 = 50번의 학습과 검증
grid_search.fit(X_train_prepraed, y_train)

GridSearchCV(cv=5, estimator=LogisticRegression(max_iter=1000, random_state=42),
             n_jobs=-1,
             param_grid={'C': [0.1, 0.2, 0.5, 1, 10], 'max_iter': [1000, 2000]},
             scoring='accuracy')

grid_search.best_params_

{'C': 1, 'max_iter': 1000}

cvres = grid_search.cv_results_

for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
  print(mean_score, params)

8047329106772958 {'C': 0.1, 'max_iter': 1000}
8047329106772958 {'C': 0.1, 'max_iter': 2000}
8103195028560668 {'C': 0.2, 'max_iter': 1000}
8103195028560668 {'C': 0.2, 'max_iter': 2000}
8114493754315486 {'C': 0.5, 'max_iter': 1000}
8114493754315486 {'C': 0.5, 'max_iter': 2000}
8136965664427844 {'C': 1, 'max_iter': 1000}
8136965664427844 {'C': 1, 'max_iter': 2000}
813684012303057 {'C': 10, 'max_iter': 1000}
813684012303057 {'C': 10, 'max_iter': 2000}

lr_final_model = grid_search.best_estimator_
lr_final_model.fit(X_train_prepraed, y_train)

LogisticRegression(C=1, max_iter=1000, random_state=42)

KNeighborsClassifier

param_grid = {'n_neighbors':[3, 5, 7, 9, 11]}

grid_search = GridSearchCV(knn_clf, param_grid, cv=5, scoring="accuracy", n_jobs=-1) # 24 * 5 = 100번의 학습과 검증
grid_search.fit(X_train_prepraed, y_train)

GridSearchCV(cv=5, estimator=KNeighborsClassifier(), n_jobs=-1,
             param_grid={'n_neighbors': [3, 5, 7, 9, 11]}, scoring='accuracy')

grid_search.best_params_

{'n_neighbors': 5}

cvres = grid_search.cv_results_

for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
  print(mean_score, params)

7980101688531793 {'n_neighbors': 3}
8148327160881299 {'n_neighbors': 5}
7946582135459168 {'n_neighbors': 7}
7968865733475614 {'n_neighbors': 9}
7969305128366079 {'n_neighbors': 11}

Decision Tree

param_grid = {'max_depth':[3, 5, 7, 9, 11]}

grid_search = GridSearchCV(tree_clf, param_grid, cv=5, scoring="accuracy", n_jobs=-1)
grid_search.fit(X_train_prepraed, y_train)

GridSearchCV(cv=5, estimator=DecisionTreeClassifier(), n_jobs=-1,
             param_grid={'max_depth': [3, 5, 7, 9, 11]}, scoring='accuracy')

grid_search.best_params_

{'max_depth': 7}

cvres = grid_search.cv_results_

for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
  print(mean_score, params)

8103132257862029 {'max_depth': 3}
8181721172556651 {'max_depth': 5}
8282719226664993 {'max_depth': 7}
8036155922415418 {'max_depth': 9}
7991212102190698 {'max_depth': 11}

tree_final_model = grid_search.best_estimator_
tree_final_model.fit(X_train_prepraed, y_train)

DecisionTreeClassifier(max_depth=7)

num_attribs = ['Age', 'Fare']
cat_attribs = ['Pclass', 'Sex', 'Embarked', 'Family_size'] #, 'Age_cat']
cat_ohe_attribs = ['Pclass_1', 'Pclass_2', 'Pclass_3',
                   'Sex_1', 'Sex_2', 'Embarked_1', 'Embarked_2', 'Embarked_3',
                   'Family_size_1', 'Family_size_2', 'Family_size_3', 'Family_size_4']
                   #'Age_cat_1', 'Age_cat_2', 'Age_cat_3', 'Age_cat_4', 'Age_cat_5']

all_attribs = num_attribs + cat_ohe_attribs
target_names = ['Not survived', 'Survived']

from sklearn import tree

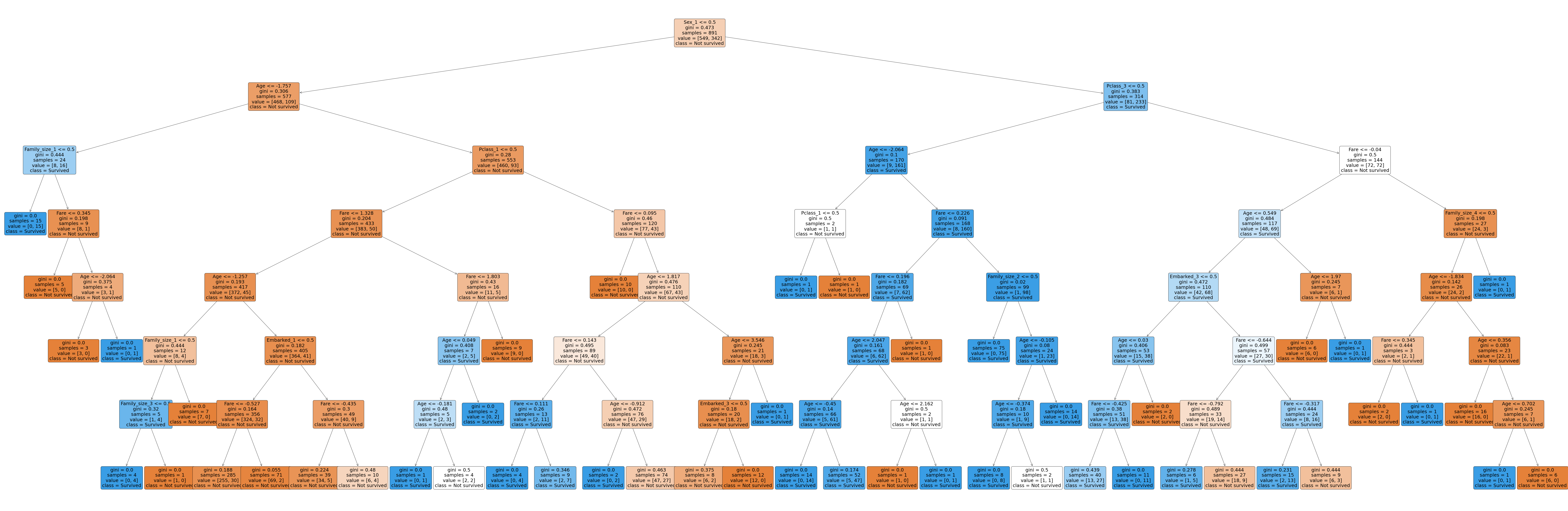

plt.figure(figsize=(150, 50))
res = tree.plot_tree(tree_final_model,
               feature_names = all_attribs,
               class_names = target_names,
               rounded = True,
               filled = True,
               fontsize=25)

png

sorted(zip(tree_final_model.feature_importances_, all_attribs), reverse=True)

[(0.4799753034557417, 'Sex_1'),
 (0.1470328405953695, 'Fare'),
 (0.13179082253077198, 'Age'),
 (0.12021196678995298, 'Pclass_3'),
 (0.04869029678945934, 'Family_size_1'),
 (0.04661302686623672, 'Pclass_1'),
 (0.01001711785051913, 'Embarked_3'),
 (0.00633026610480512, 'Family_size_4'),
 (0.006172009452184985, 'Family_size_3'),
 (0.002922820151598823, 'Embarked_1'),
 (0.00024352941335955124, 'Family_size_2'),
 (0.0, 'Sex_2'),
 (0.0, 'Pclass_2'),
 (0.0, 'Embarked_2')]

RandomForest

param_grid = {'n_estimators':[100, 200, 300], 'max_depth':[5, 7, 9, 11]}

grid_search = GridSearchCV(rnd_clf, param_grid, cv=5, scoring="accuracy", n_jobs=-1)
grid_search.fit(X_train_prepraed, y_train)

GridSearchCV(cv=5, estimator=RandomForestClassifier(n_jobs=-1, random_state=42),
             n_jobs=-1,
             param_grid={'max_depth': [5, 7, 9, 11],
                         'n_estimators': [100, 200, 300]},
             scoring='accuracy')

print(grid_search.best_params_)
cvres = grid_search.cv_results_

for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
  print(mean_score, params)

rf_final_model = grid_search.best_estimator_
rf_final_model.fit(X_train_prepraed, y_train)

{'max_depth': 7, 'n_estimators': 100}
8193082669010107 {'max_depth': 5, 'n_estimators': 100}
8193019898311468 {'max_depth': 5, 'n_estimators': 200}
8170610758897746 {'max_depth': 5, 'n_estimators': 300}
8226916075575922 {'max_depth': 7, 'n_estimators': 100}
8226853304877284 {'max_depth': 7, 'n_estimators': 200}
8182035026049841 {'max_depth': 7, 'n_estimators': 300}
8215805661917017 {'max_depth': 9, 'n_estimators': 100}
8215805661917017 {'max_depth': 9, 'n_estimators': 200}
8193333751804659 {'max_depth': 9, 'n_estimators': 300}
8159625886636119 {'max_depth': 11, 'n_estimators': 100}
8159688657334756 {'max_depth': 11, 'n_estimators': 200}
8170861841692298 {'max_depth': 11, 'n_estimators': 300}





RandomForestClassifier(max_depth=7, n_jobs=-1, random_state=42)

sorted(zip(rf_final_model.feature_importances_, all_attribs), reverse=True)

[(0.22661319164248106, 'Sex_2'),
 (0.20598466532945145, 'Sex_1'),
 (0.15065113082226642, 'Fare'),
 (0.1476700317091729, 'Age'),
 (0.06749172988344757, 'Pclass_3'),
 (0.04309627388087689, 'Pclass_1'),
 (0.03810687703951553, 'Family_size_1'),
 (0.031037269118605965, 'Family_size_2'),
 (0.0198646408180714, 'Pclass_2'),
 (0.01908234726067075, 'Family_size_3'),
 (0.015539397763291867, 'Embarked_3'),
 (0.01481044882815969, 'Embarked_1'),
 (0.01111682809322282, 'Family_size_4'),
 (0.008935167810765757, 'Embarked_2')]

SVM
(1) linear_svc

param_grid = {'C':[0.1, 1, 2, 5, 10]}

grid_search = GridSearchCV(linear_svc, param_grid, cv=5, scoring="accuracy", n_jobs=-1)
grid_search.fit(X_train_prepraed, y_train)

print(grid_search.best_params_)
cvres = grid_search.cv_results_

for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
  print(mean_score, params)

{'C': 10}
0.8080723118448307 {'C': 0.1}
0.8080785889146945 {'C': 1}
0.8080785889146945 {'C': 2}
0.8080785889146945 {'C': 5}
0.8092021844203126 {'C': 10}


C:\Users\mue\anaconda3\lib\site-packages\sklearn\svm\_base.py:985: ConvergenceWarning: Liblinear failed to converge, increase the number of iterations.
  warnings.warn("Liblinear failed to converge, increase "

(2) svc

# 시간이 오래 걸림. 파라미터 줄여서 탐색하기기
# param_grid = [{'kernel': ['poly'], 'degree': [2, 3, 4], 'coef0':[1, 50, 100], 'C':[0.1, 1, 2, 5, 10, 50, 100, 500, 1000]},
#               {'kernel': ['rbf'], 'gamma': [0.1, 5, 10], 'C':[0.1, 1, 2, 5, 10, 100, 500, 1000]}]

# grid_search = GridSearchCV(linear_kernel_svc, param_grid, cv=5, scoring="accuracy", n_jobs=-1)
# grid_search.fit(X_train_prepraed, y_train)

# print(grid_search.best_params_)
# cvres = grid_search.cv_results_

# for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
#   print(mean_score, params)

5. 예측과 성능 평가(by kaggle)

X_test_preprocessed = full_pipeline.transform(test_df)
X_test_preprocessed

array([[ 0.39488658, -0.78852313,  0.        , ...,  0.        ,
         1.        ,  0.        ],
       [ 1.35550962, -0.82852989,  0.        , ...,  0.        ,
         0.        ,  1.        ],
       [ 2.50825727, -0.69886497,  0.        , ...,  0.        ,
         1.        ,  0.        ],
       ...,
       [ 0.70228595, -0.81646803,  0.        , ...,  0.        ,
         1.        ,  0.        ],
       [-0.1046374 , -0.7778701 ,  0.        , ...,  0.        ,
         1.        ,  0.        ],
       [-0.1046374 , -0.08753169,  0.        , ...,  1.        ,
         0.        ,  0.        ]])

test_df.shape, X_test_preprocessed.shape

((418, 13), (418, 14))

final_pred = rf_final_model.predict(X_test_preprocessed)

submission["Survived"] = final_pred

ver = 10
submission.to_csv('./datasets/titanic_ver_{}_submission.csv'.format(ver), index=False)

Reference

핸즈온 머신러닝 (오렐리앙 제롱 저)

Twitter Facebook LinkedIn

Machine learning 5 (타이타닉 데이터셋)

타이타닉 데이터셋 도전

1. 데이터 탐색

1. 데이터 가져오기

2. 데이터 훑어보기

2. 데이터 전처리 (누락 데이터 처리, 범주화 등)

2.1 특성데이터와 레이블 데이터 분리

2.2 범주형 데이터 전처리

2.3 수치형 데이터 전처리

2.4 수치형 데이터와 범주형 데이터 연결

3. 모델 선택과 훈련

4. 하이퍼파라미터 튜닝

5. 예측과 성능 평가(by kaggle)

Reference

공유하기

댓글남기기

참고

소개(about me)

Rnn 20 (attention and seq2seq learning using date dataset in pytorch)

Rnn 19 (attention and seq2seq learning using addition dataset in pytorch)

Rnn 18 (어텐션)
